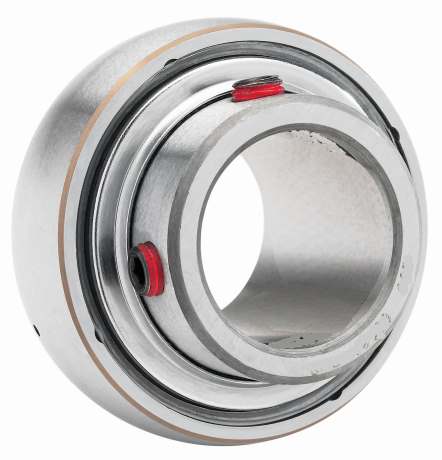

Timken YA107RRB
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
YA..RRB
Seal Type
Narrow Shroud
Dimensions
Outside Diameter D
72 mm
Inner Ring Width B
36.5 mm
Outside Ring Width C
19 mm
Radius r
0.6 mm
Center of Bearing from End S
10.85 mm
Dimension S1
25.65 mm
Dimension F
46.8 mm
Dimension J
7.87 mm
Set Screw Size
M8x1.25
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
15300 N
Dynamic Load Rating
28500 N
