Timken YA108RRB
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
YA..RRB
Seal Type
Narrow Shroud

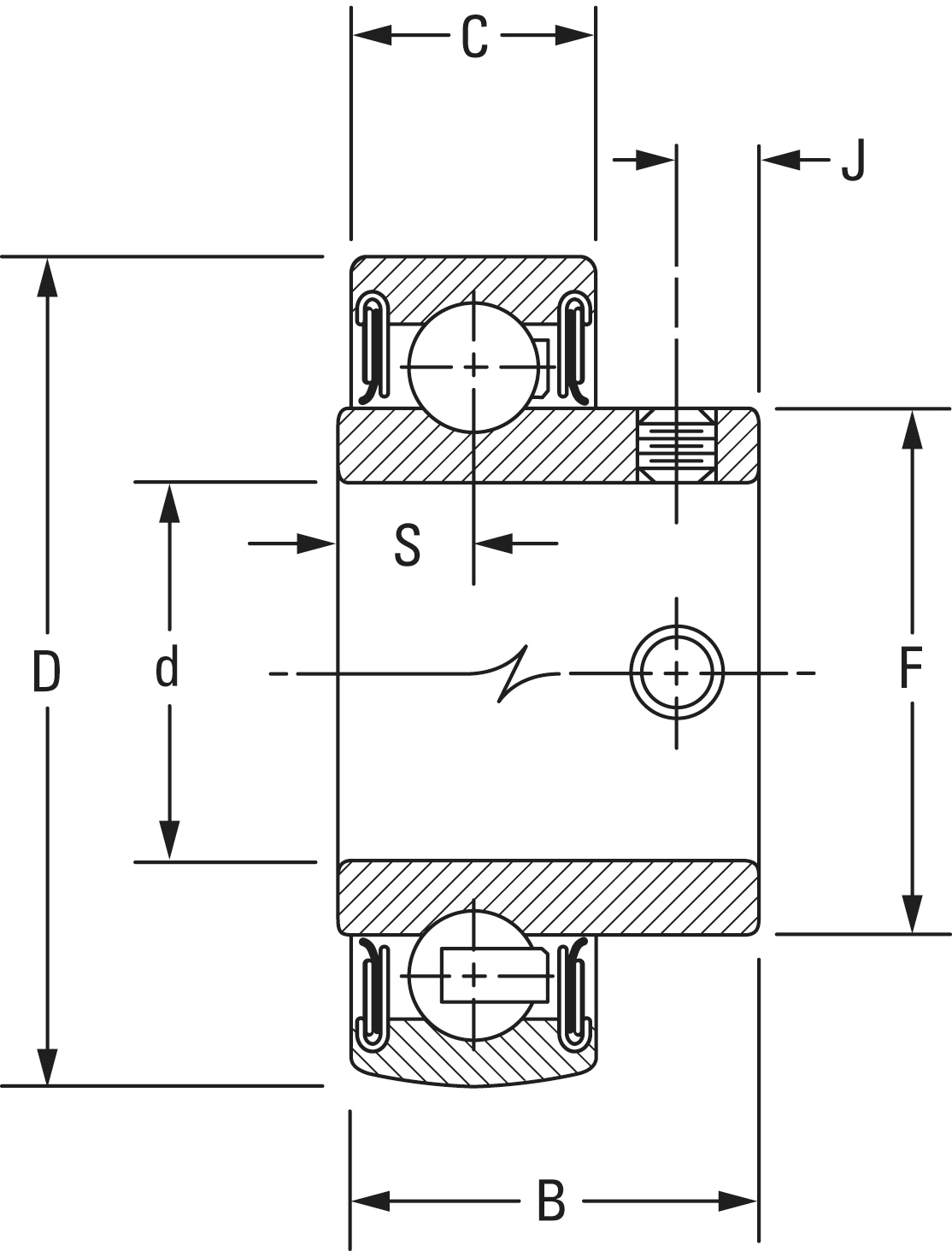

Dimensions
Outside Diameter D
80 mm
Inner Ring Width B
39.3 mm
Outside Ring Width C
22 mm
Radius r
0.6 mm
Center of Bearing from End S
11.63 mm
Dimension S1
27.67 mm
Dimension F
52.4 mm
Dimension J
7.87 mm
Set Screw Size
M8x1.25
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
19800 N
Dynamic Load Rating
36200 N
