Timken YA115RR
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
YA..RR
Seal Type
Narrow Shroud

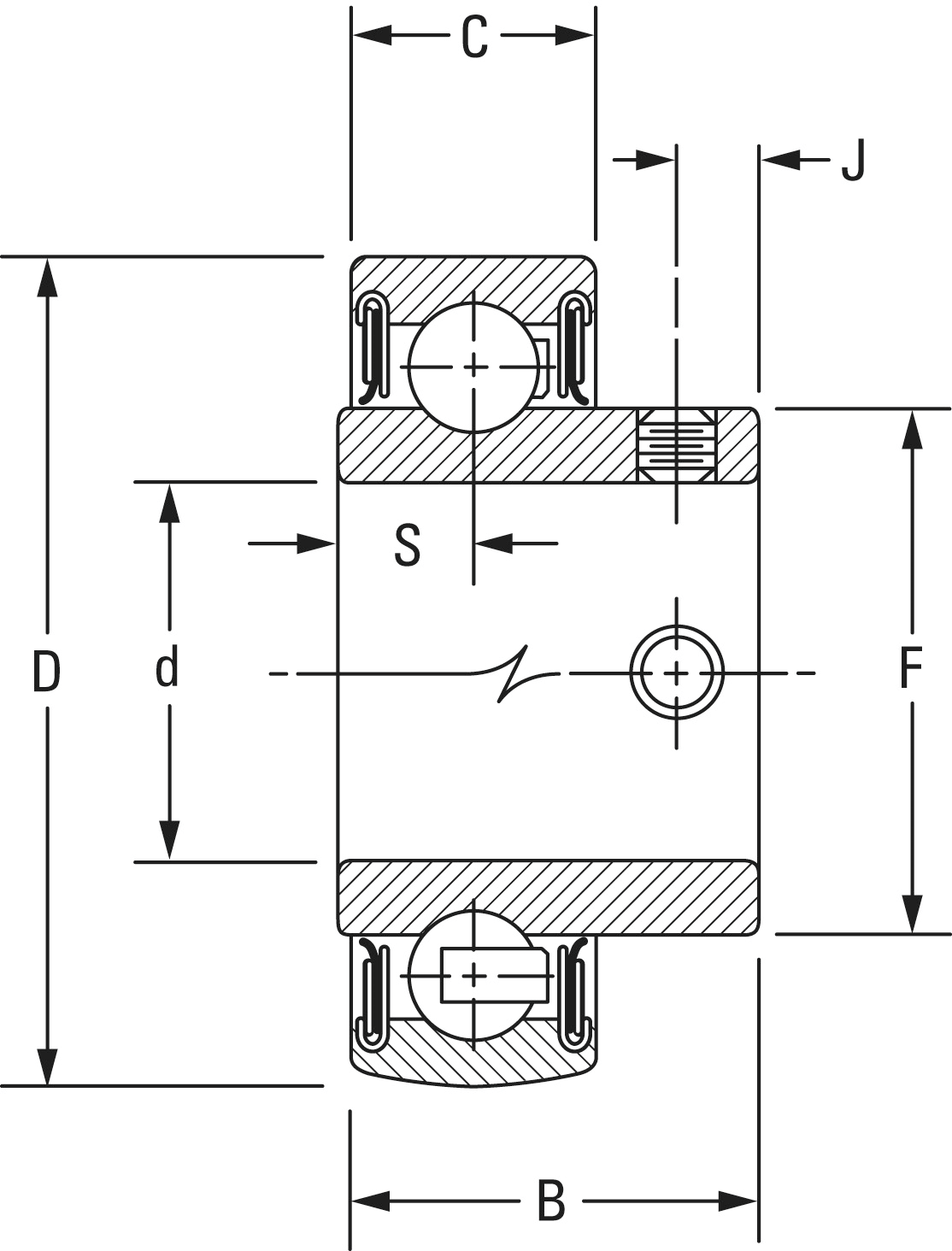

Dimensions
Outside Diameter D
90 mm
Inner Ring Width B
44.3 mm
Outside Ring Width C
22 mm
Radius r
0.6 mm
Center of Bearing from End S
13.46 mm
Dimension S1
30.84 mm
Dimension F
62.7 mm
Dimension J
9.02 mm
Set Screw Size
M10x1.5
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
23200 N
Dynamic Load Rating
38900 N
