Timken YA203RR
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
YA..RR
Seal Type
Narrow Shroud

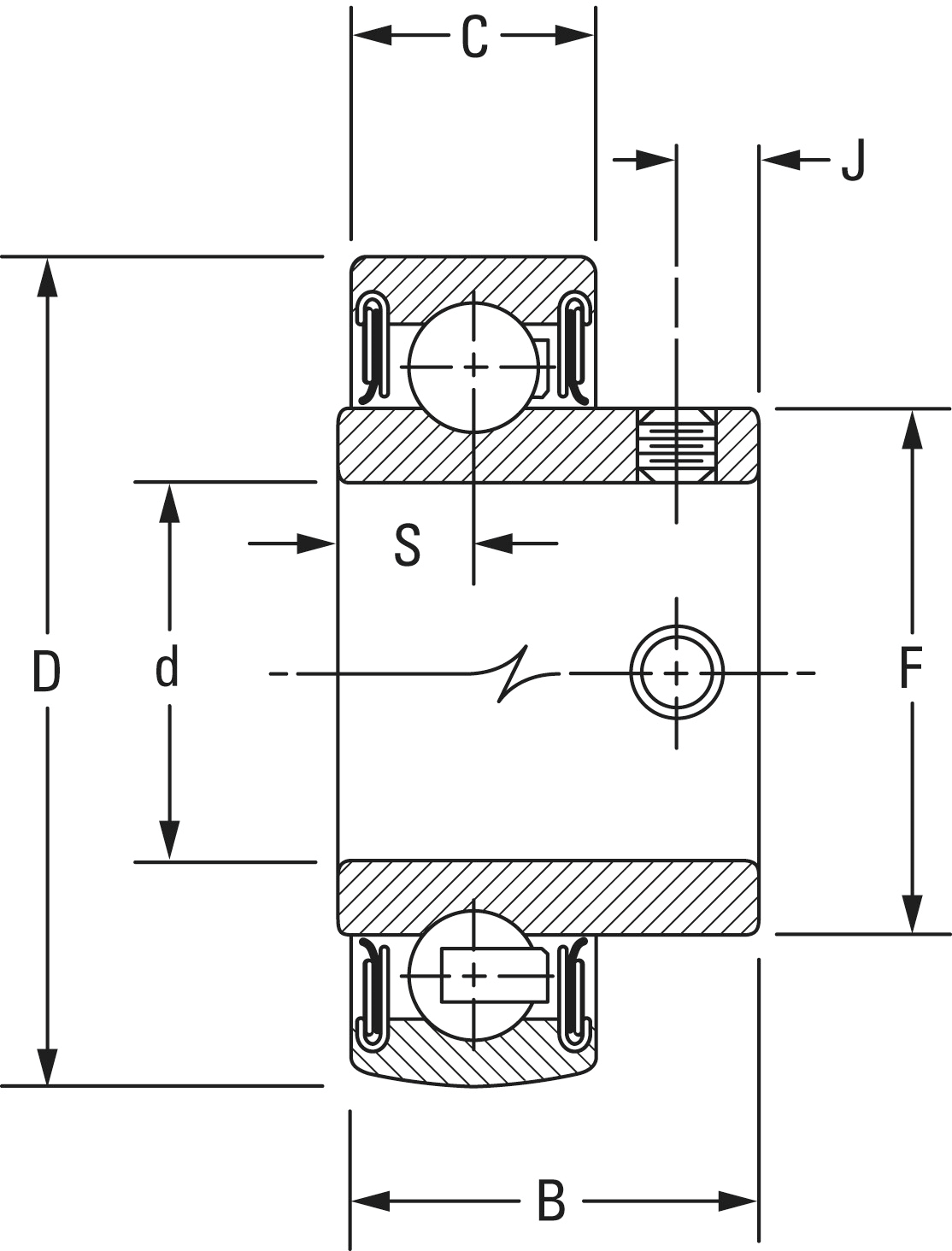

Dimensions
Outside Diameter D
100 mm
Inner Ring Width B
46.6 mm
Outside Ring Width C
24 mm
Radius r
0.6 mm
Center of Bearing from End S
14.6 mm
Dimension S1
32 mm
Dimension F
69.8 mm
Dimension J
9.02 mm
Set Screw Size
M10x1.5
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
29200 N
Dynamic Load Rating
48100 N
