FAG 1218-TVH
Self-Aligning Ball Bearings
Self-aligning ball bearing 12..-TVH, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

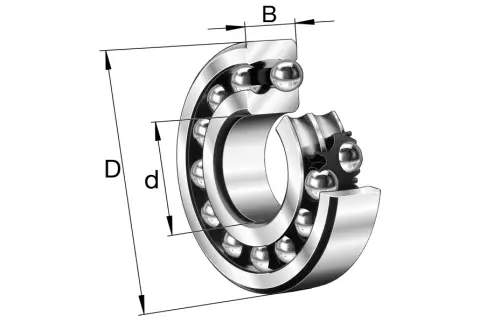

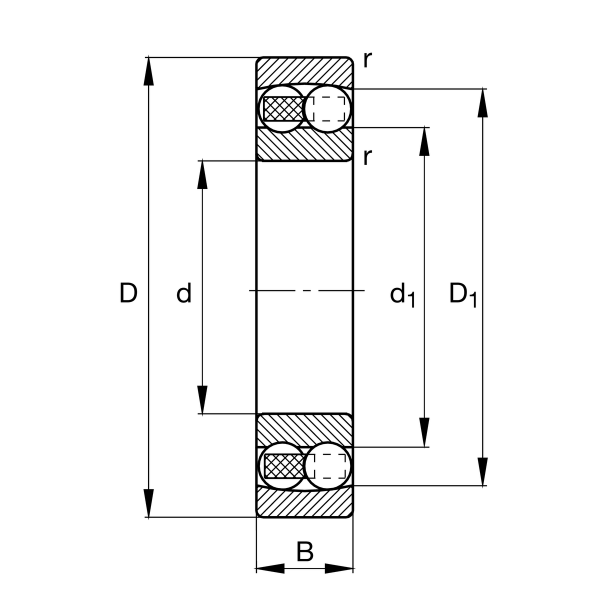

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
160 mm
Outside diameter
B
30 mm
Width
Cr
57,000 N
Basic dynamic load rating, radial
C0r
23,500 N
Basic static load rating, radial
Cur
1,330 N
Fatigue load limit, radial
CG
4,550 1/min
Limiting speed
nϑr
4,850 1/min
Reference speed
≈m
2.466 kg
Weight

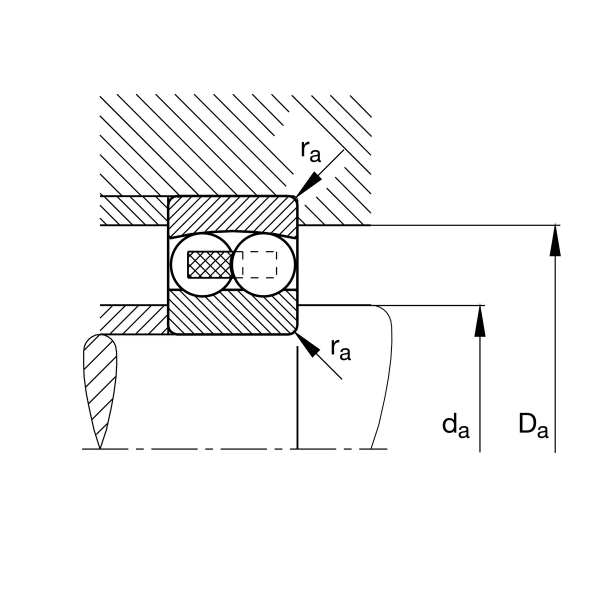

Mounting dimensions
da min
101 mm
Minimum diameter shaft shoulder
da min
149 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
