FAG 1222-K-M
Self-Aligning Ball Bearings
Self-aligning ball bearing 12..-K-M, tapered bore taper 1:12, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

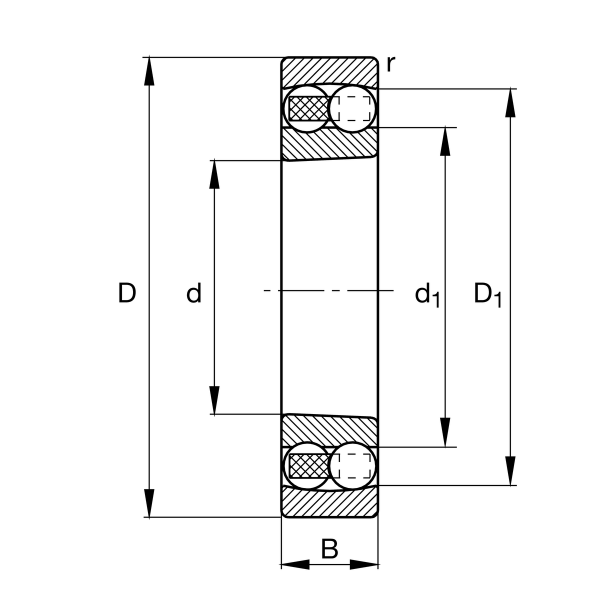

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
200 mm
Outside diameter
B
38 mm
Width
Cr
89,000 N
Basic dynamic load rating, radial
C0r
38,500 N
Basic static load rating, radial
Cur
1,960 N
Fatigue load limit, radial
CG
5,300 1/min
Limiting speed
nϑr
4,200 1/min
Reference speed
≈m
5.27 kg
Weight

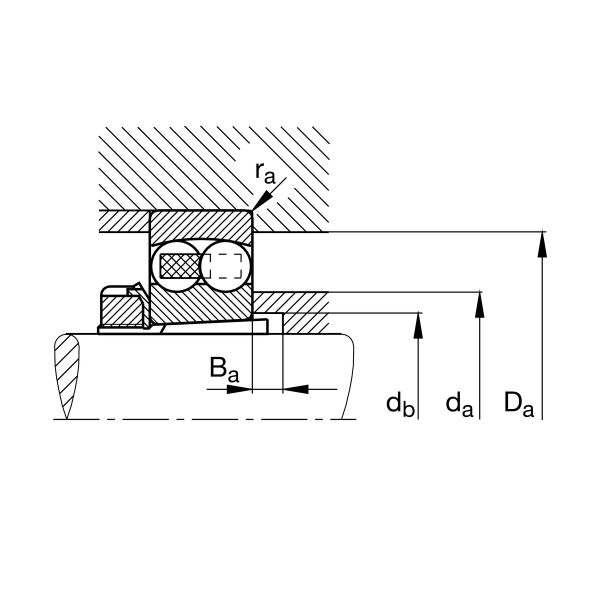

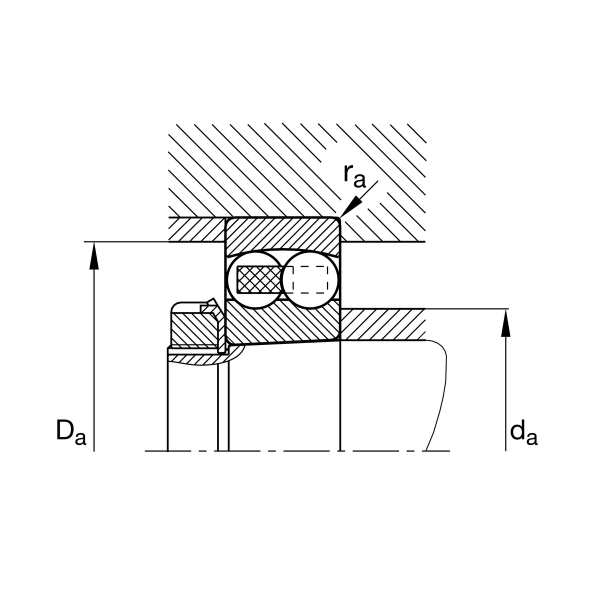

Mounting dimensions
da min
122 mm
Minimum diameter shaft shoulder
da max
138 mm
Maximum diameter shaft shoulder
da min
188 mm
Maximum diameter of housing shoulder
db min
116 mm
Minimum cavity diameter of the sleeve
Ba min
7 mm
Minimum cavity width of the sleeve
ra max
2.1 mm
Maximum fillet radius
