FAG 1322-M
Self-Aligning Ball Bearings
Self-aligning ball bearing 13..-M, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
240 mm
Outside diameter
B
50 mm
Width
Cr
165,000 N
Basic dynamic load rating, radial
C0r
72,000 N
Basic static load rating, radial
Cur
3,400 N
Fatigue load limit, radial
CG
4,200 1/min
Limiting speed
nϑr
3,400 1/min
Reference speed
≈m
11.8 kg
Weight

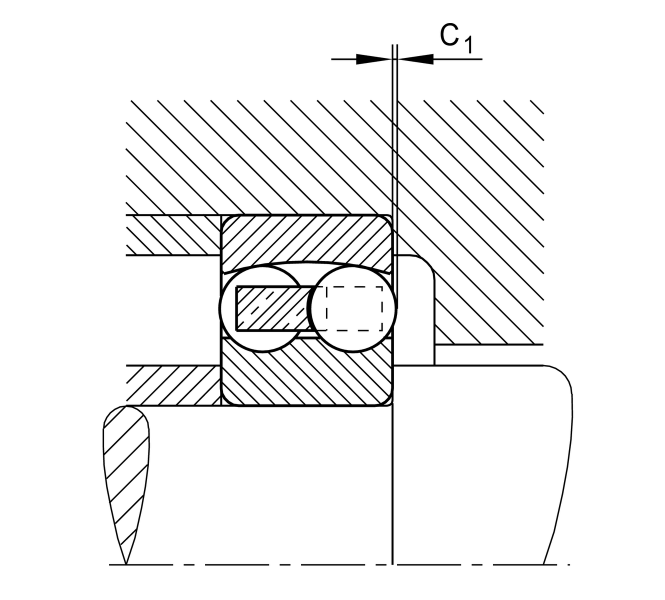

Mounting dimensions
da min
124 mm
Minimum diameter shaft shoulder
da min
226 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
