FAG 1226-M
Self-Aligning Ball Bearings
Self-aligning ball bearing 12..-M, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
230 mm
Outside diameter
B
46 mm
Width
Cr
125,000 N
Basic dynamic load rating, radial
C0r
56,000 N
Basic static load rating, radial
Cur
2,650 N
Fatigue load limit, radial
CG
4,450 1/min
Limiting speed
nϑr
4,000 1/min
Reference speed
≈m
8.396 kg
Weight

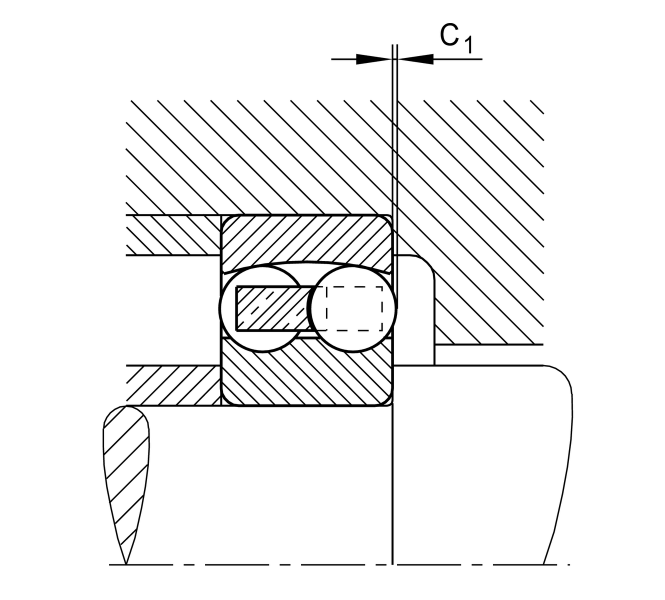

Mounting dimensions
da min
144 mm
Minimum diameter shaft shoulder
da min
216 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
