FAG 1228-M
Self-Aligning Ball Bearings
Self-aligning ball bearing 12..-M, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
250 mm
Outside diameter
B
50 mm
Width
Cr
163,000 N
Basic dynamic load rating, radial
C0r
74,000 N
Basic static load rating, radial
Cur
3,350 N
Fatigue load limit, radial
CG
3,900 1/min
Limiting speed
nϑr
3,650 1/min
Reference speed
≈m
11.3 kg
Weight

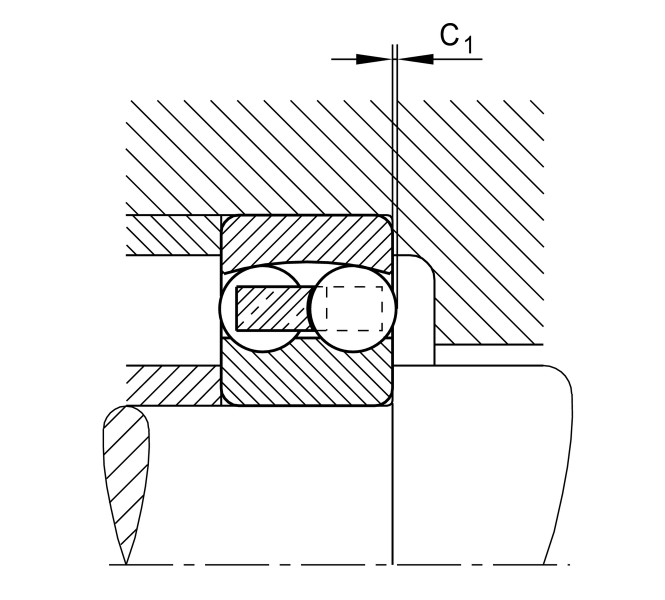

Mounting dimensions
da min
154 mm
Minimum diameter shaft shoulder
da min
236 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
