FAG 1318-M-C3
Self-Aligning Ball Bearings
Self-aligning ball bearing 13..-M, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
190 mm
Outside diameter
B
43 mm
Width
Cr
109,000 N
Basic dynamic load rating, radial
C0r
43,000 N
Basic static load rating, radial
Cur
2,300 N
Fatigue load limit, radial
CG
5,500 1/min
Limiting speed
nϑr
4,200 1/min
Reference speed
≈m
6.13 kg
Weight

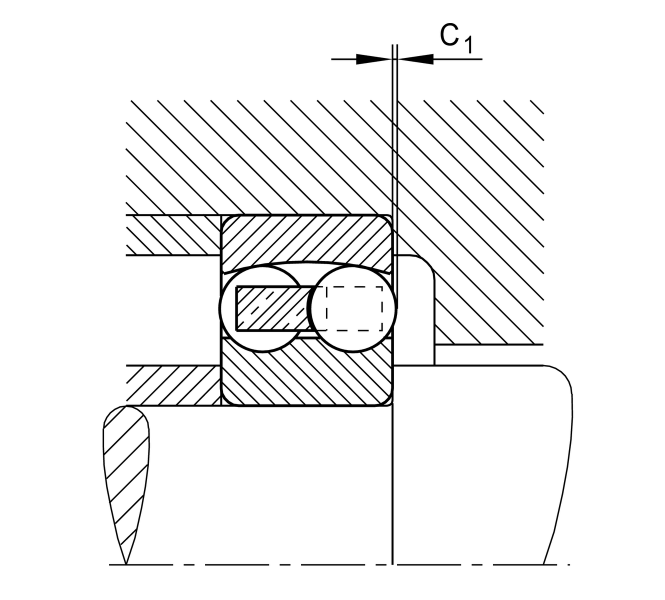

Mounting dimensions
da min
104 mm
Minimum diameter shaft shoulder
da min
176 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
