FAG 20205-K-TVP-C3
Barrel Roller Bearings
Barrel roller bearing 202..-K-TVP
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

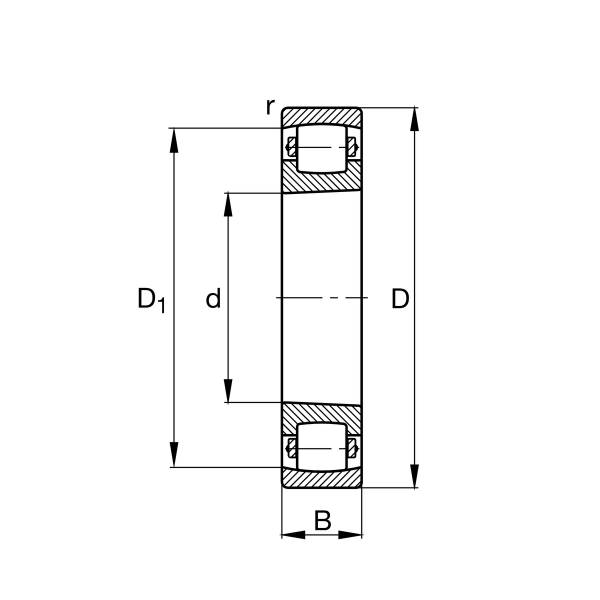

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width
Cr
24,100 N
Basic dynamic load rating, radial
C0r
24,900 N
Basic static load rating, radial
Cur
2,260 N
Fatigue load limit, radial
CG
11,500 1/min
Limiting speed
≈m
0.133 kg
Weight
Mounting dimensions
da min
30.6 mm
Minimum diameter shaft shoulder
da min
46.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
da max
33 mm
Maximum diameter of shaft shoulder
db min
28 mm
Minimum cavity diameter of the sleeve
Ba min
6 mm
Minimum cavity width of the sleeve
