FAG 20208-K-TVP-C3
Barrel Roller Bearings
Barrel roller bearing 202..-K-TVP
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

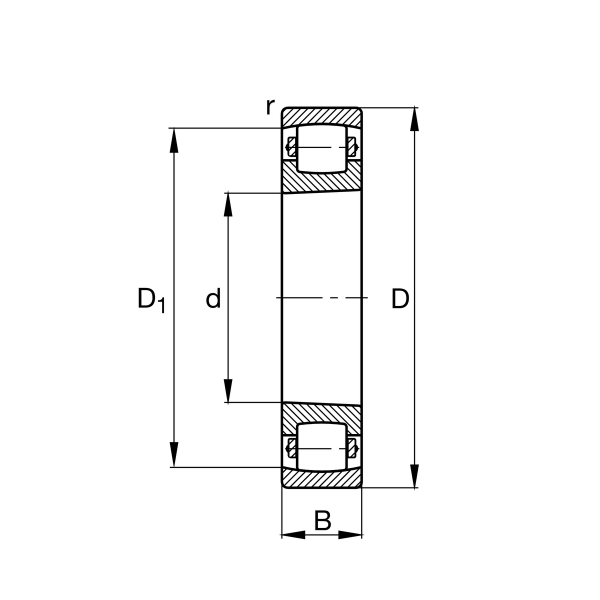

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
80 mm
Outside diameter
B
18 mm
Width
Cr
49,500 N
Basic dynamic load rating, radial
C0r
53,000 N
Basic static load rating, radial
Cur
5,200 N
Fatigue load limit, radial
CG
8,700 1/min
Limiting speed
≈m
0.365 kg
Weight

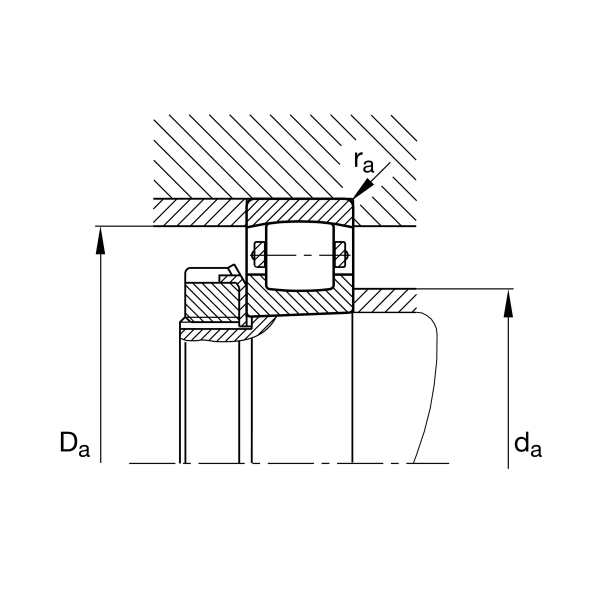

Mounting dimensions
da min
47 mm
Minimum diameter shaft shoulder
da min
73 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
da max
51 mm
Maximum diameter of shaft shoulder
db min
43 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
