FAG 20210-K-TVP-C3
Barrel Roller Bearings
Barrel roller bearing 202..-K-TVP
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

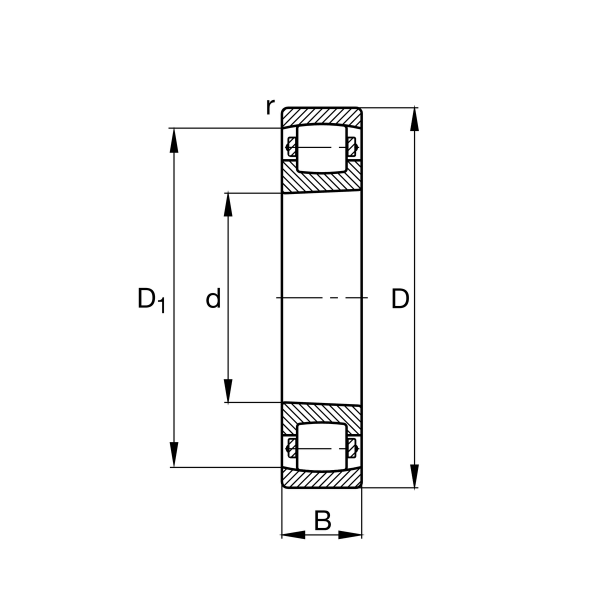

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
90 mm
Outside diameter
B
20 mm
Width
Cr
59,000 N
Basic dynamic load rating, radial
C0r
69,000 N
Basic static load rating, radial
Cur
7,200 N
Fatigue load limit, radial
CG
7,700 1/min
Limiting speed
≈m
0.472 kg
Weight

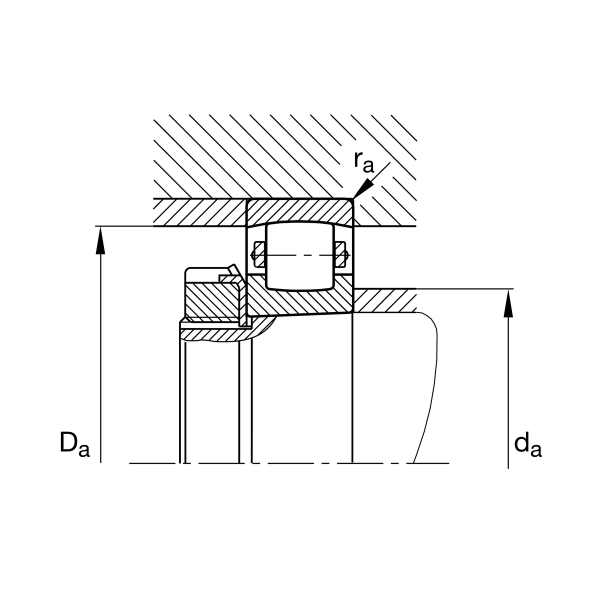

Mounting dimensions
da min
57 mm
Minimum diameter shaft shoulder
da min
83 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
da max
61 mm
Maximum diameter of shaft shoulder
db min
53 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
