FAG 20211-K-TVP-C3
Barrel Roller Bearings
Barrel roller bearing 202..-K-TVP
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

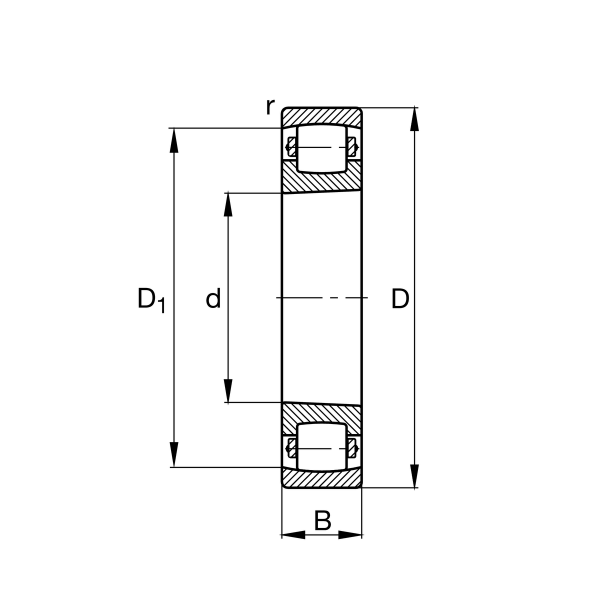

Main Dimensions & Performance Data
d
55 mm
Bore diameter
D
100 mm
Outside diameter
B
21 mm
Width
Cr
74,000 N
Basic dynamic load rating, radial
C0r
85,000 N
Basic static load rating, radial
Cur
9,000 N
Fatigue load limit, radial
CG
7,100 1/min
Limiting speed
≈m
0.623 kg
Weight

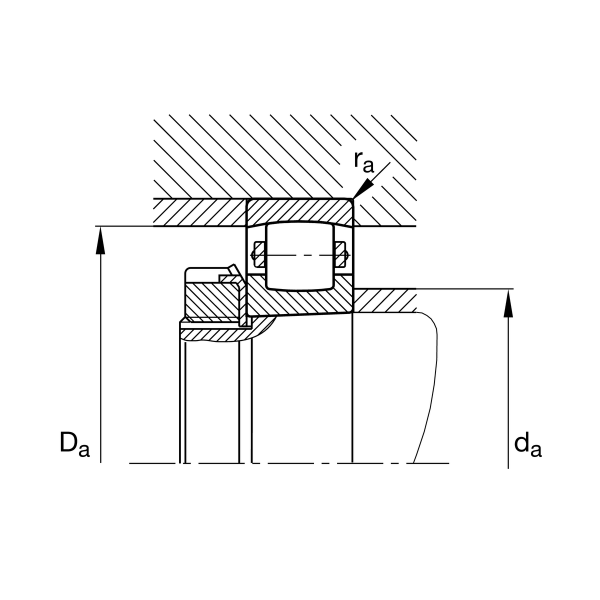

Mounting dimensions
da min
64 mm
Minimum diameter shaft shoulder
da min
91 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
da max
68 mm
Maximum diameter of shaft shoulder
db min
60 mm
Minimum cavity diameter of the sleeve
Ba min
6 mm
Minimum cavity width of the sleeve
