FAG 20212-K-TVP-C3
Barrel Roller Bearings
Barrel roller bearing 202..-K-TVP
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

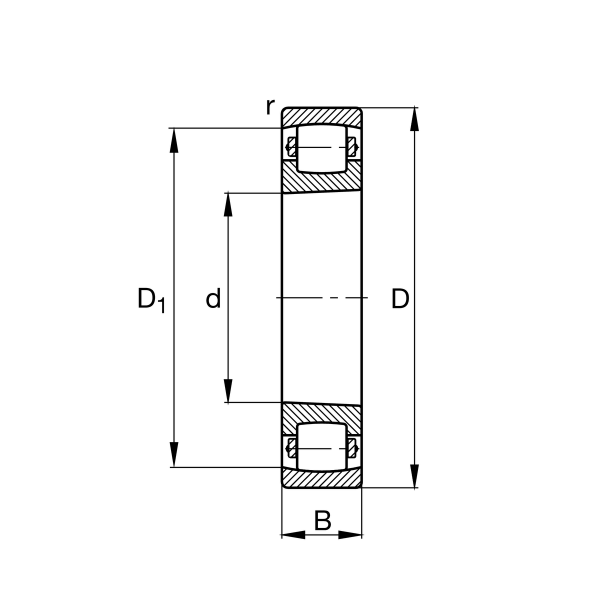

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
110 mm
Outside diameter
B
22 mm
Width
Cr
85,000 N
Basic dynamic load rating, radial
C0r
100,000 N
Basic static load rating, radial
Cur
11,000 N
Fatigue load limit, radial
CG
6,600 1/min
Limiting speed
≈m
0.796 kg
Weight

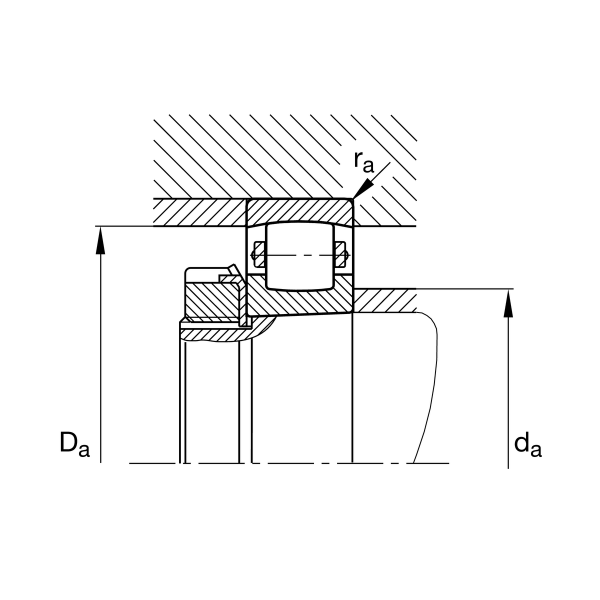

Mounting dimensions
da min
69 mm
Minimum diameter shaft shoulder
da min
101 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
da max
73 mm
Maximum diameter of shaft shoulder
db min
64 mm
Minimum cavity diameter of the sleeve
Ba min
6 mm
Minimum cavity width of the sleeve
