FAG 20212-TVP-C3
Barrel Roller Bearings
Barrel roller bearings 202, main dimensions to DIN 635-1
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

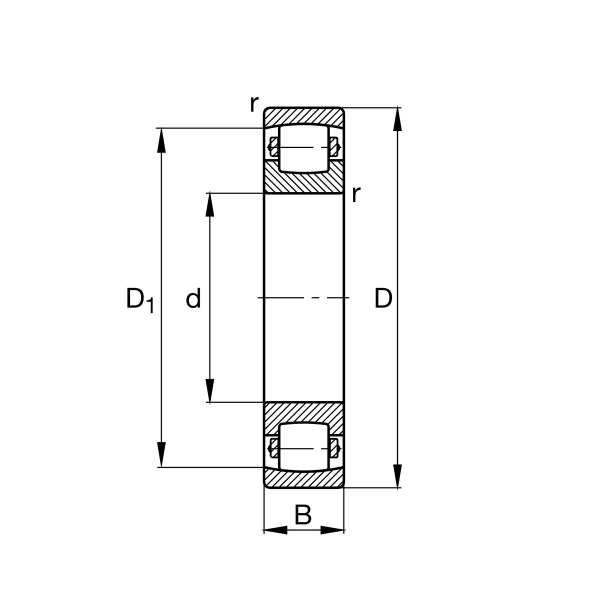

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
110 mm
Outside diameter
B
22 mm
Width
Cr
85,000 N
Basic dynamic load rating, radial
C0r
100,000 N
Basic static load rating, radial
Cur
11,000 N
Fatigue load limit, radial
CG
6,600 1/min
Limiting speed
≈m
0.805 kg
Weight

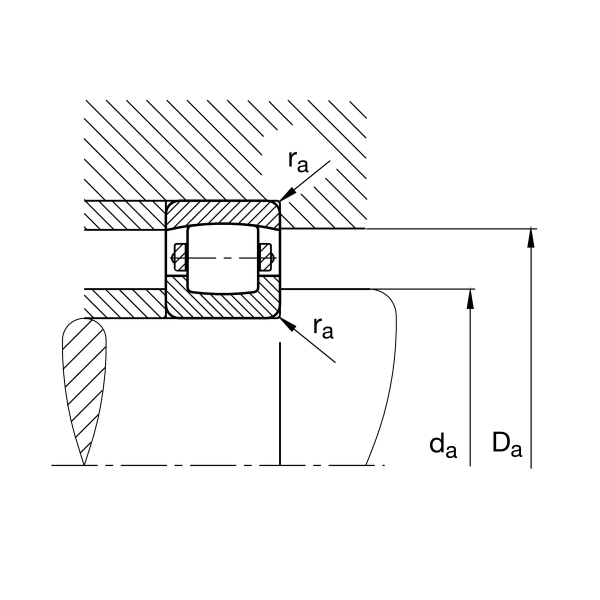

Mounting dimensions
da min
69 mm
Minimum diameter shaft shoulder
da min
101 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
