FAG 20213-K-TVP-C3
Barrel Roller Bearings
Barrel roller bearing 202..-K-TVP
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

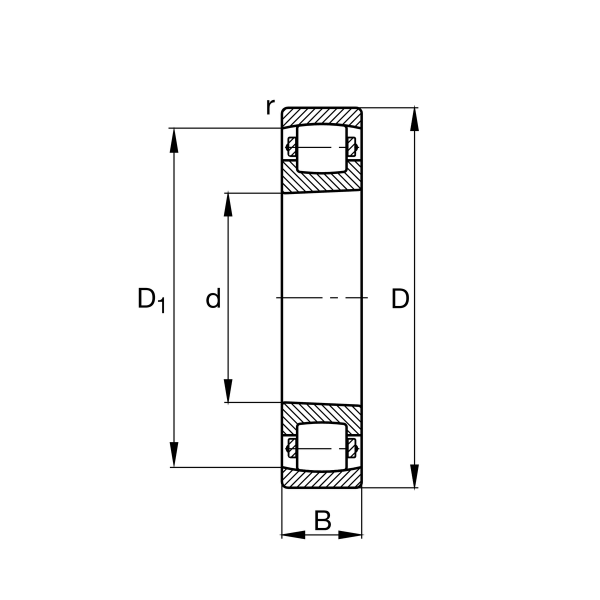

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
120 mm
Outside diameter
B
23 mm
Width
Cr
94,000 N
Basic dynamic load rating, radial
C0r
117,000 N
Basic static load rating, radial
Cur
12,700 N
Fatigue load limit, radial
CG
6,000 1/min
Limiting speed
≈m
1.045 kg
Weight

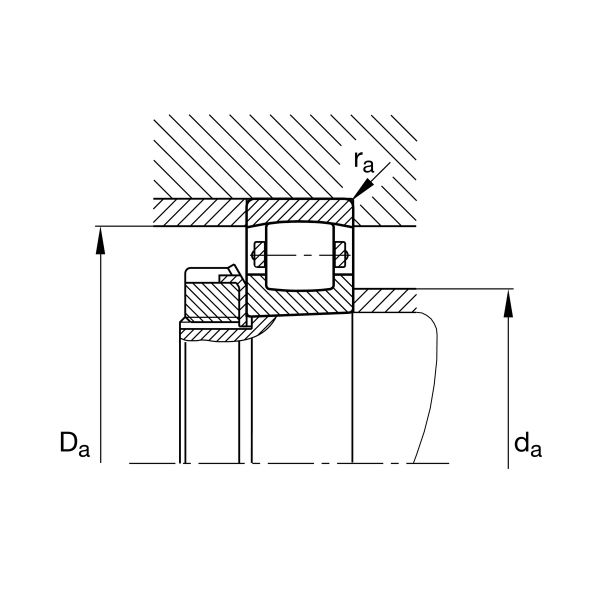

Mounting dimensions
da min
74 mm
Minimum diameter shaft shoulder
da min
111 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
da max
80 mm
Maximum diameter of shaft shoulder
db min
70 mm
Minimum cavity diameter of the sleeve
Ba min
5 mm
Minimum cavity width of the sleeve
