FAG 20215-TVP

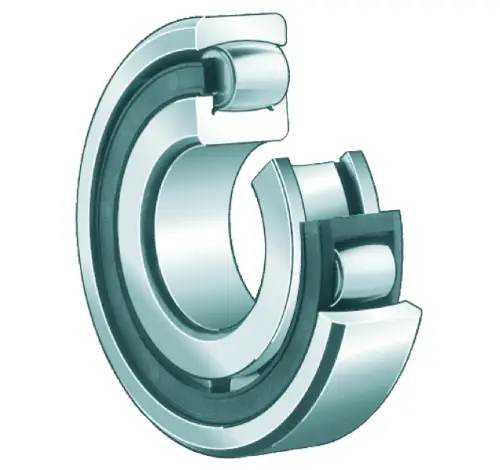

Barrel Roller Bearings
Barrel roller bearings 202, main dimensions to DIN 635-1
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

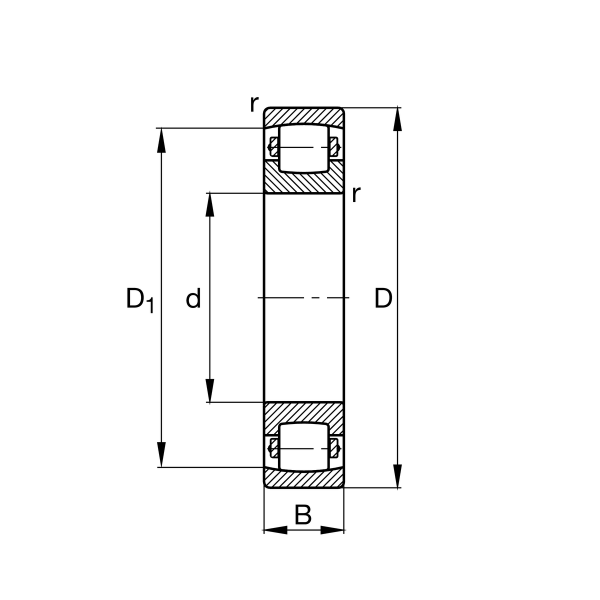

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
130 mm
Outside diameter
B
25 mm
Width
Cr
112,000 N
Basic dynamic load rating, radial
C0r
143,000 N
Basic static load rating, radial
Cur
16,400 N
Fatigue load limit, radial
CG
5,500 1/min
Limiting speed
≈m
1.24 kg
Weight

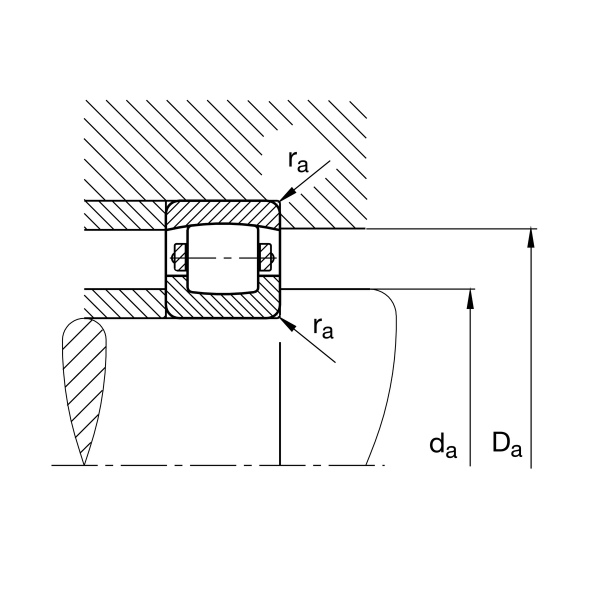

Mounting dimensions
da min
84 mm
Minimum diameter shaft shoulder
da min
121 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
