FAG 20217-MB-C3
Barrel Roller Bearings
Barrel roller bearing 202..-MB
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

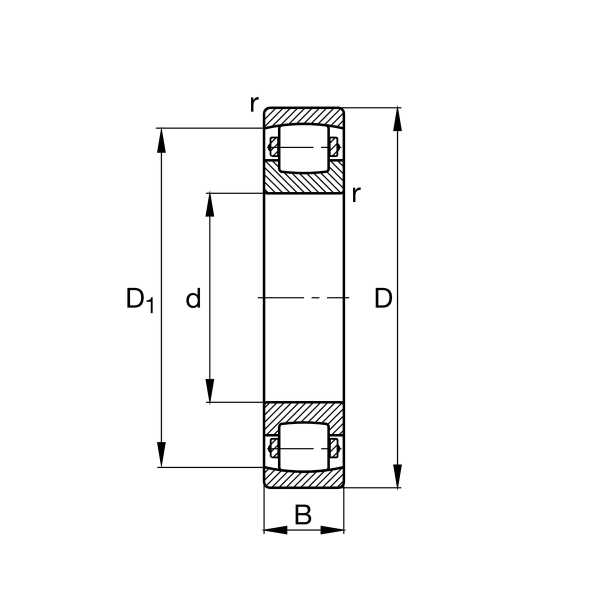

Main Dimensions & Performance Data
d
85 mm
Bore diameter
D
150 mm
Outside diameter
B
28 mm
Width
Cr
155,000 N
Basic dynamic load rating, radial
C0r
201,000 N
Basic static load rating, radial
Cur
20,800 N
Fatigue load limit, radial
CG
4,750 1/min
Limiting speed
≈m
2.175 kg
Weight

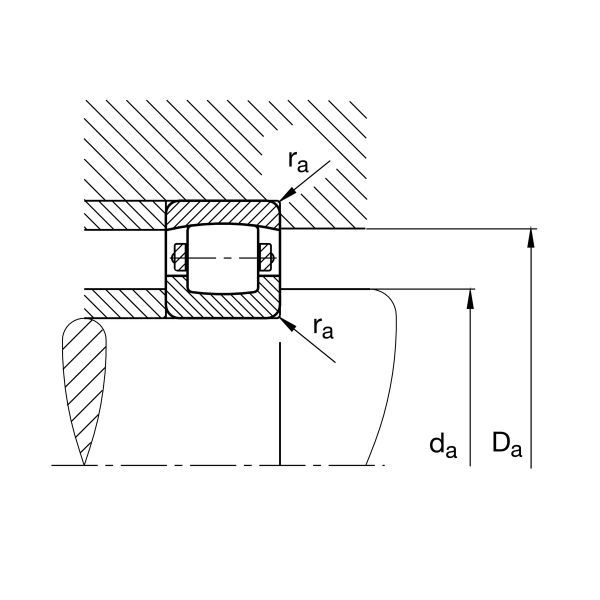

Mounting dimensions
da min
96 mm
Minimum diameter shaft shoulder
da min
139 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
