FAG 20224-MB
Barrel Roller Bearings

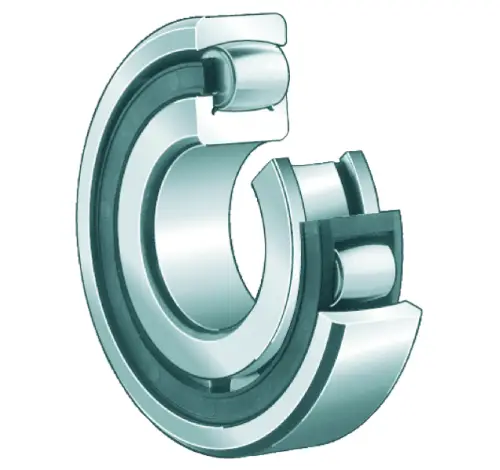

Barrel roller bearing 202..-MB
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

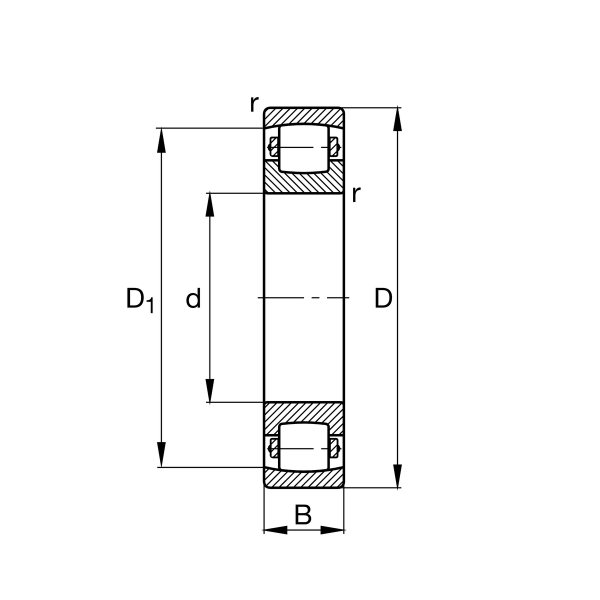

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
215 mm
Outside diameter
B
40 mm
Width
Cr
305,000 N
Basic dynamic load rating, radial
C0r
415,000 N
Basic static load rating, radial
Cur
38,500 N
Fatigue load limit, radial
CG
3,350 1/min
Limiting speed
≈m
6.678 kg
Weight
Mounting dimensions
da min
132 mm
Minimum diameter shaft shoulder
da min
203 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
