FAG 20230-K-MB-C3
Barrel Roller Bearings
Barrel roller bearing 202..-K-MB
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

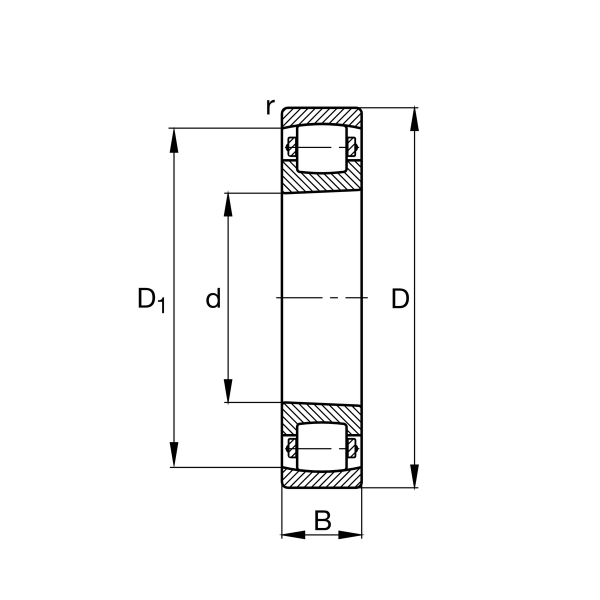

Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
270 mm
Outside diameter
B
45 mm
Width
Cr
430,000 N
Basic dynamic load rating, radial
C0r
610,000 N
Basic static load rating, radial
Cur
56,000 N
Fatigue load limit, radial
CG
2,850 1/min
Limiting speed
≈m
11.5 kg
Weight

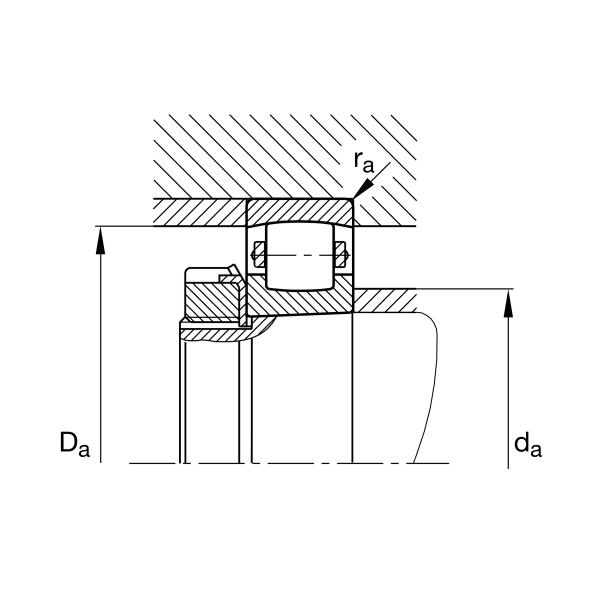

Mounting dimensions
da min
164 mm
Minimum diameter shaft shoulder
da min
256 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
da max
181 mm
Maximum diameter of shaft shoulder
db min
158 mm
Minimum cavity diameter of the sleeve
Ba min
19 mm
Minimum cavity width of the sleeve
