FAG 20230-MB-C3
Barrel Roller Bearings

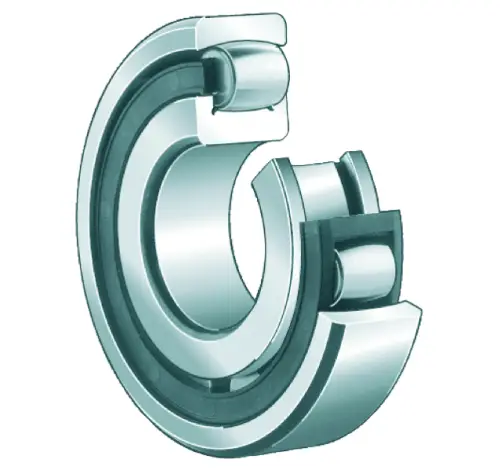

Barrel roller bearing 202..-MB
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
270 mm
Outside diameter
B
45 mm
Width
Cr
430,000 N
Basic dynamic load rating, radial
C0r
610,000 N
Basic static load rating, radial
Cur
56,000 N
Fatigue load limit, radial
CG
2,850 1/min
Limiting speed
≈m
11.6 kg
Weight
Mounting dimensions
da min
164 mm
Minimum diameter shaft shoulder
da min
256 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
