FAG 20240-MB
Barrel Roller Bearings

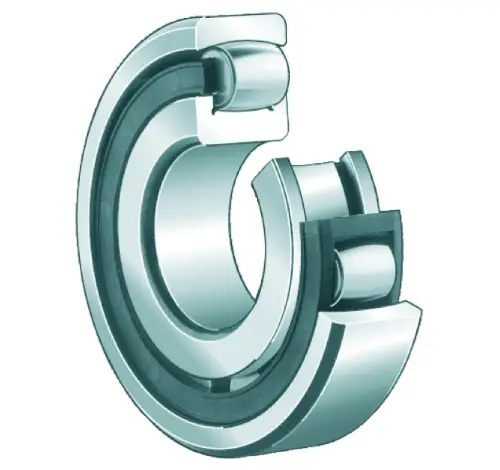

Barrel roller bearing 202..-MB
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

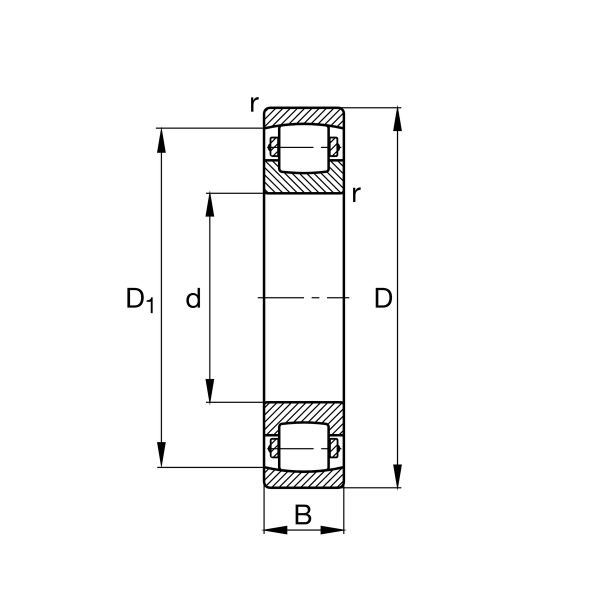

Main Dimensions & Performance Data
d
200 mm
Bore diameter
D
360 mm
Outside diameter
B
58 mm
Width
Cr
730,000 N
Basic dynamic load rating, radial
C0r
1,080,000 N
Basic static load rating, radial
Cur
92,000 N
Fatigue load limit, radial
CG
2,180 1/min
Limiting speed
≈m
26.6 kg
Weight

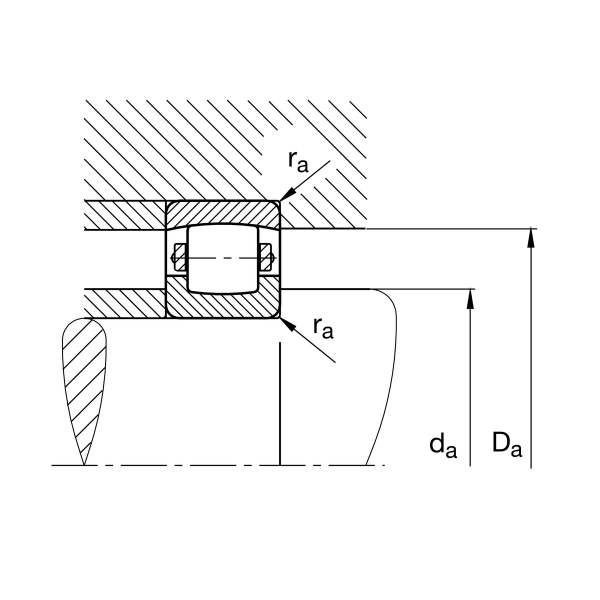

Mounting dimensions
da min
217 mm
Minimum diameter shaft shoulder
da min
343 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
