FAG 20324-MB

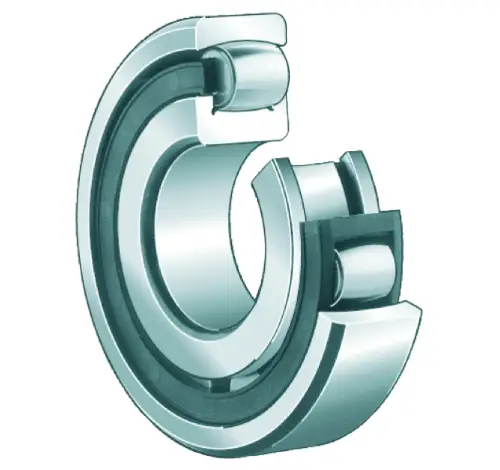

Barrel Roller Bearings
Barrel roller bearings 203, main dimensions to DIN 635-1
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

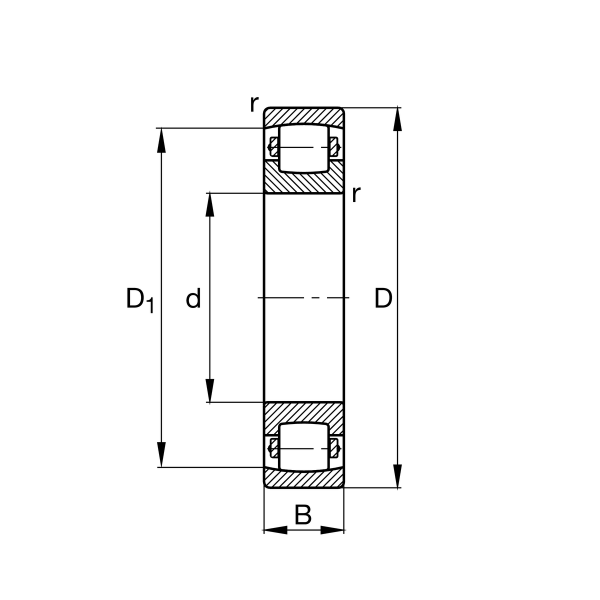

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
260 mm
Outside diameter
B
55 mm
Width
Cr
490,000 N
Basic dynamic load rating, radial
C0r
630,000 N
Basic static load rating, radial
Cur
52,000 N
Fatigue load limit, radial
CG
2,750 1/min
Limiting speed
≈m
15.1 kg
Weight

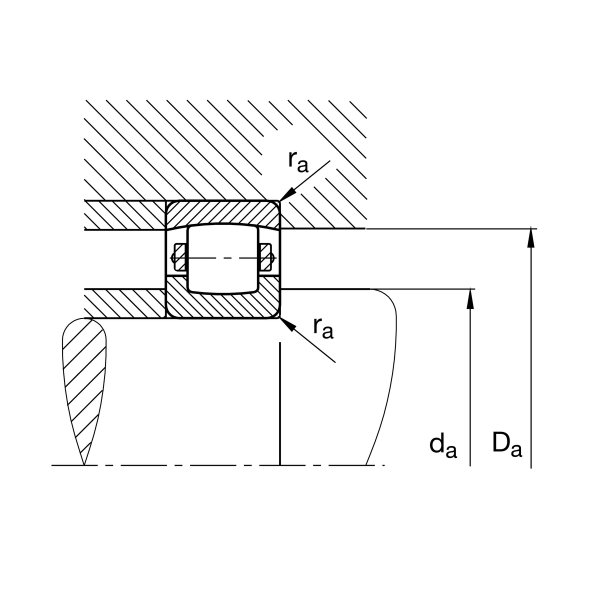

Mounting dimensions
da min
134 mm
Minimum diameter shaft shoulder
da min
246 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
