FAG 2220-K-M
Self-Aligning Ball Bearings
Self-aligning ball bearing 22..-K-M, tapered bore taper 1:12, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

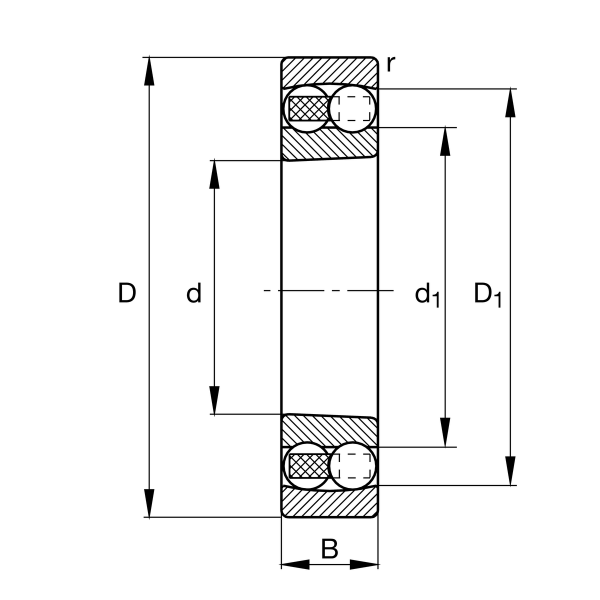

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
180 mm
Outside diameter
B
46 mm
Width
Cr
98,000 N
Basic dynamic load rating, radial
C0r
40,500 N
Basic static load rating, radial
Cur
2,180 N
Fatigue load limit, radial
CG
5,700 1/min
Limiting speed
nϑr
4,900 1/min
Reference speed
≈m
4.94 kg
Weight

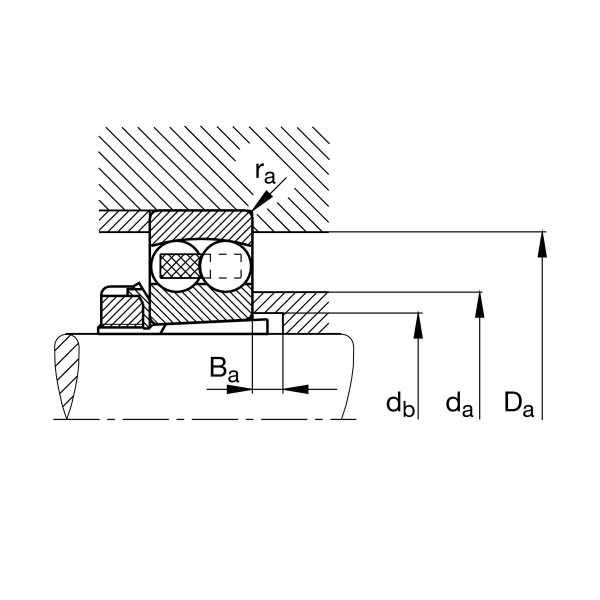

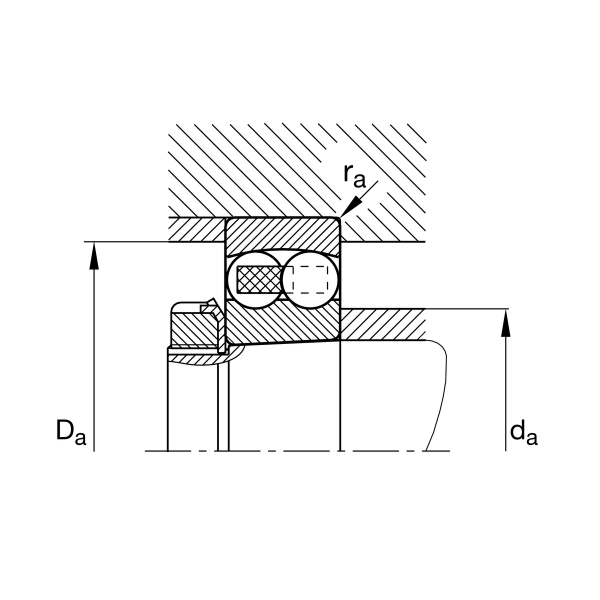

Mounting dimensions
da min
112 mm
Minimum diameter shaft shoulder
da max
120 mm
Maximum diameter shaft shoulder
da min
168 mm
Maximum diameter of housing shoulder
db min
108 mm
Minimum cavity diameter of the sleeve
Ba min
8 mm
Minimum cavity width of the sleeve
ra max
2.1 mm
Maximum fillet radius
