FAG 2318-M-C3
Self-Aligning Ball Bearings
Self-aligning ball bearing 23..-M, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
190 mm
Outside diameter
B
64 mm
Width
Cr
156,000 N
Basic dynamic load rating, radial
C0r
58,000 N
Basic static load rating, radial
Cur
3,100 N
Fatigue load limit, radial
CG
5,100 1/min
Limiting speed
nϑr
5,000 1/min
Reference speed
≈m
8.44 kg
Weight

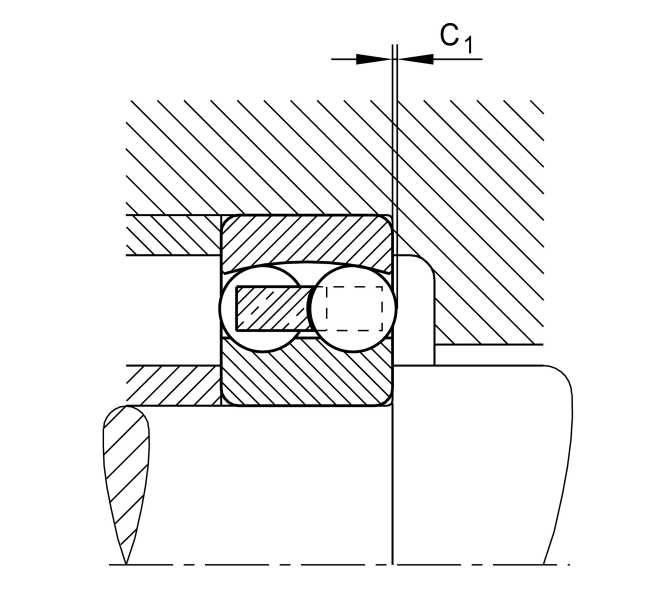

Mounting dimensions
da min
104 mm
Minimum diameter shaft shoulder
da min
176 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
