FAG 234406-M-SP
Axial-Super Precision Bearings

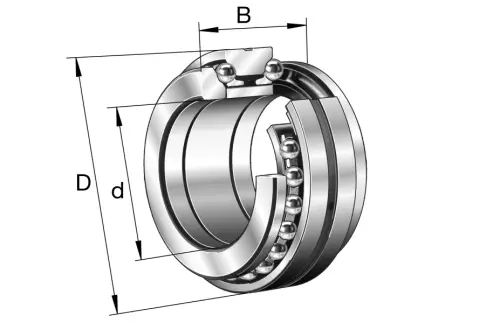

Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

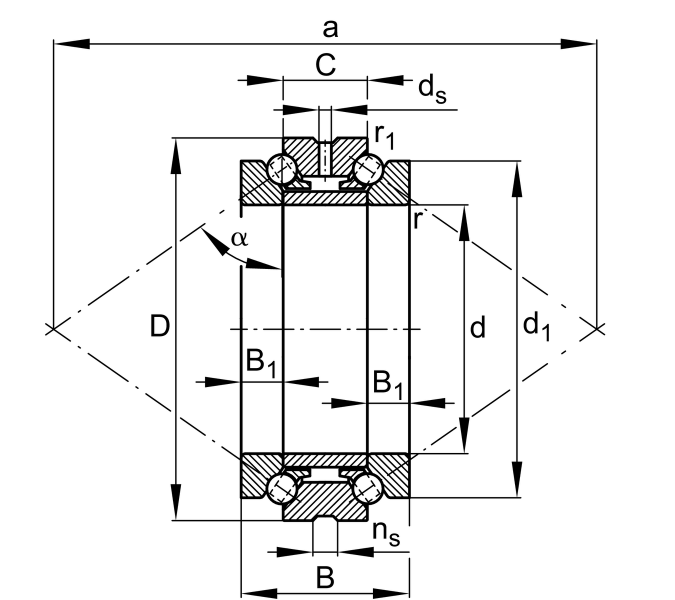

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
55 mm
Outside diameter
B
32 mm
Width
C
16 mm
Width, outer ring
Ca
15,700 N
Basic dynamic load rating, axial
C0a
38,500 N
Basic static load rating, axial
Cua
3,600 N
Fatigue load limit, axial
nG Grease
11,000 1/min
Limiting speed for grease lubrication
nG Oil
16,000 1/min
Limiting speed for oil lubrication
≈m
291.03 g
Weight

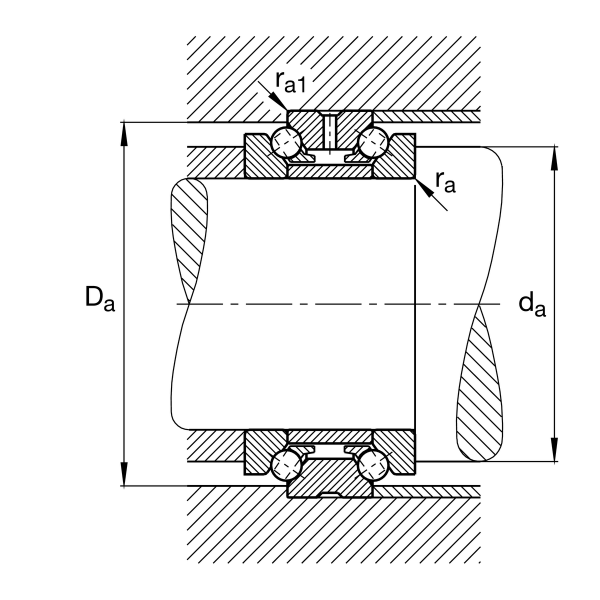

Mounting dimensions
da
40.5 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
50.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1 mm
Maximum recess radius
ra1 max
0.15 mm
Maximum recess radius
α
60 u00B0
Contact angle
a
91.5 mm
Distance between the apexes of the pressure cones
