FAG 234420-M-SP
Axial-Super Precision Bearings

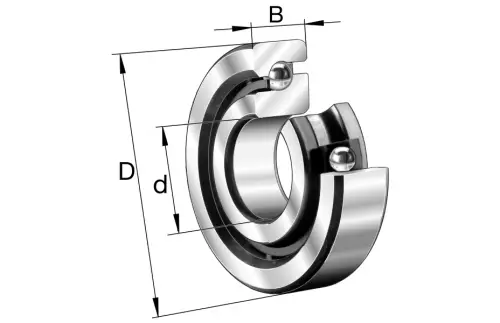

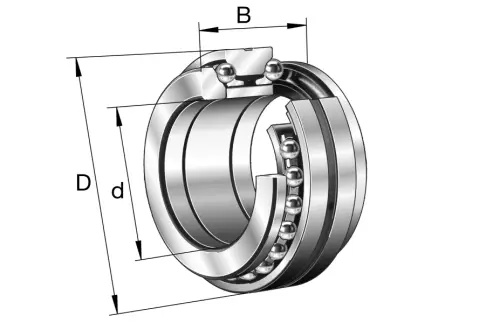

Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

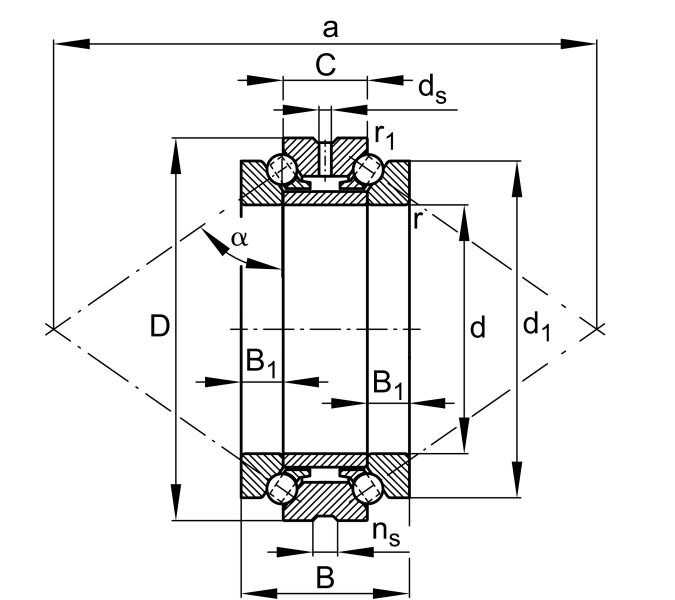

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
150 mm
Outside diameter
B
60 mm
Width
C
30 mm
Width, outer ring
Ca
68,000 N
Basic dynamic load rating, axial
C0a
229,000 N
Basic static load rating, axial
Cua
18,800 N
Fatigue load limit, axial
nG Grease
3,800 1/min
Limiting speed for grease lubrication
nG Oil
5,000 1/min
Limiting speed for oil lubrication
≈m
3.165 kg
Weight

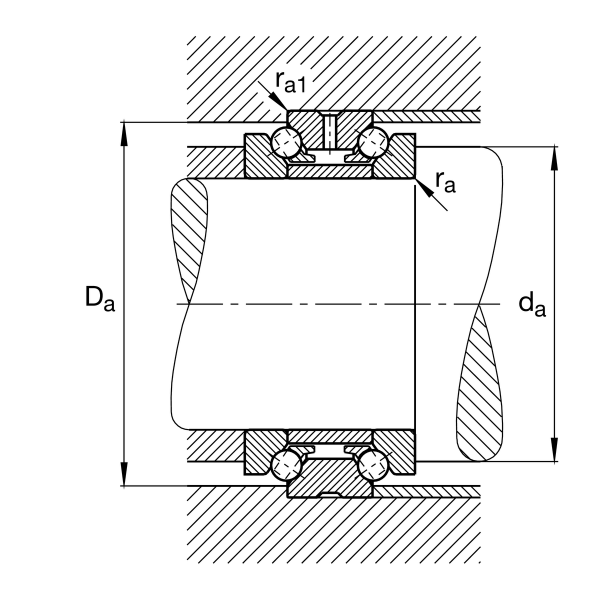

Mounting dimensions
da
120.5 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
140.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
1.5 mm
Maximum recess radius
ra1 max
0.3 mm
Maximum recess radius
α
60 u00B0
Contact angle
a
249.5 mm
Distance between the apexes of the pressure cones
