FAG 234422-M-SP
Axial-Super Precision Bearings
Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

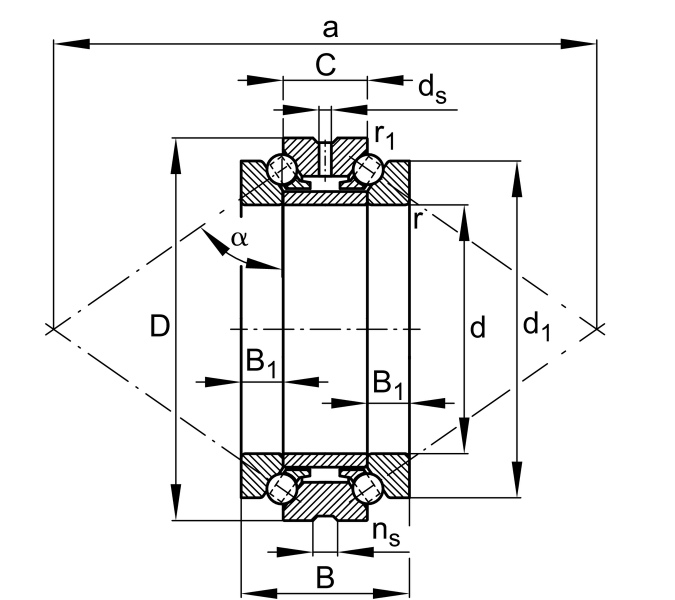

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
170 mm
Outside diameter
B
72 mm
Width
C
36 mm
Width, outer ring
Ca
98,000 N
Basic dynamic load rating, axial
C0a
325,000 N
Basic static load rating, axial
Cua
25,500 N
Fatigue load limit, axial
nG Grease
3,400 1/min
Limiting speed for grease lubrication
nG Oil
4,500 1/min
Limiting speed for oil lubrication
≈m
5.441 kg
Weight

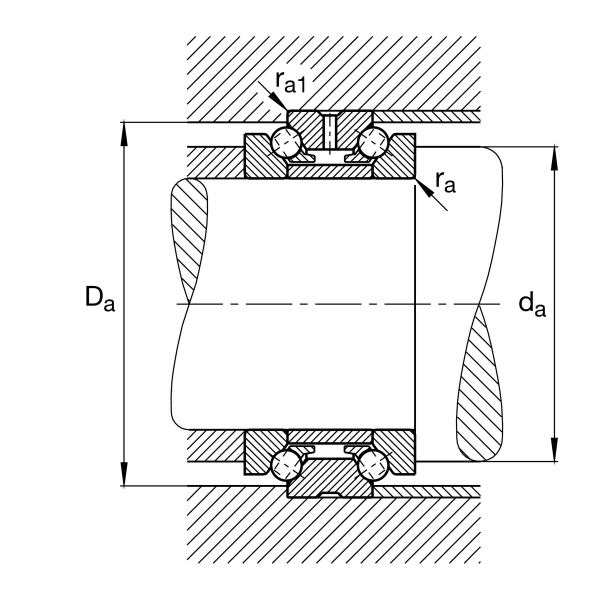

Mounting dimensions
da
134.5 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
160 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
α
60 u00B0
Contact angle
a
282.5 mm
Distance between the apexes of the pressure cones
