FAG 234426-M-SP
Axial-Super Precision Bearings
Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

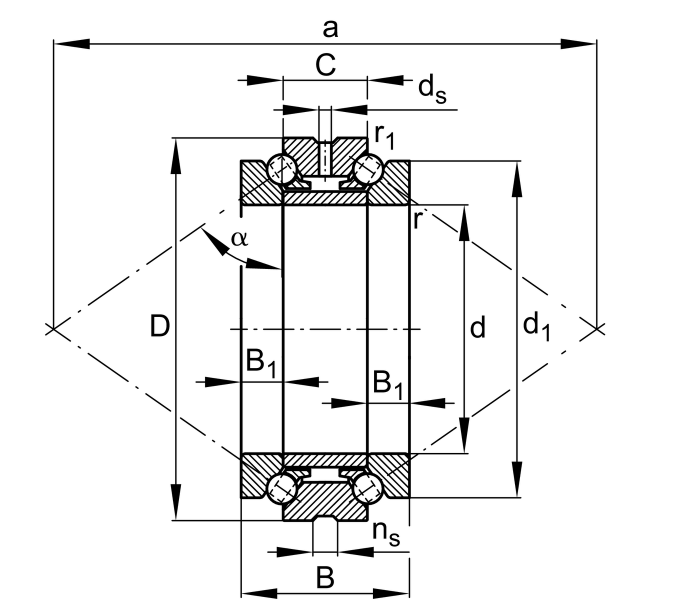

Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
200 mm
Outside diameter
B
84 mm
Width
C
42 mm
Width, outer ring
Ca
128,000 N
Basic dynamic load rating, axial
C0a
440,000 N
Basic static load rating, axial
Cua
31,500 N
Fatigue load limit, axial
nG Grease
2,800 1/min
Limiting speed for grease lubrication
nG Oil
3,800 1/min
Limiting speed for oil lubrication
≈m
8.28 kg
Weight

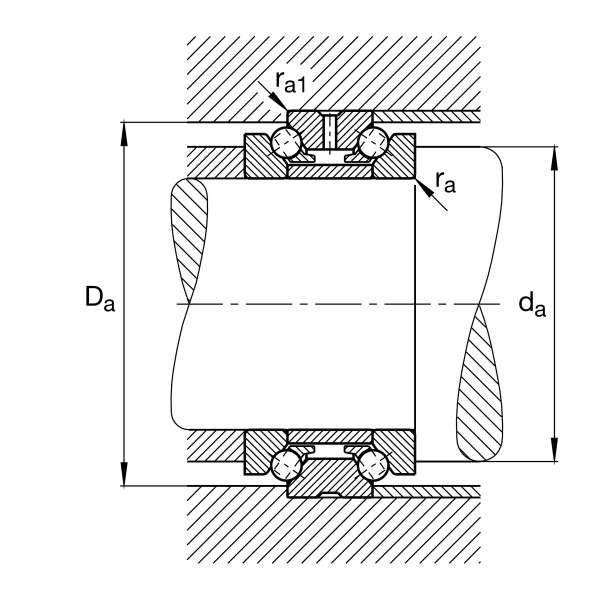

Mounting dimensions
da
159 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
188 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
α
60 u00B0
Contact angle
a
333 mm
Distance between the apexes of the pressure cones
