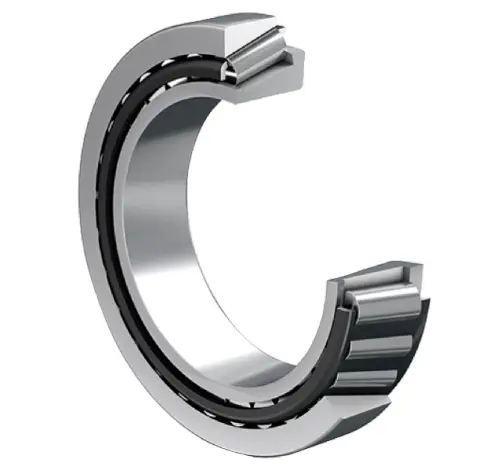

FAG 30214-XL
Tapered roller bearings 302, main dimensions to DIN ISO 355 / DIN 720, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
125 mm
Outside diameter
B
24 mm
Width, inner ring
C
21 mm
Width, outer ring
T
26.25 mm
Width, total
Cr
163,000 N
Basic dynamic load rating, radial
C0r
162,000 N
Basic static load rating, radial
Cur
25,000 N
Fatigue load limit, radial
CG
7,100 1/min
Limiting speed
nϑr
3,700 1/min
Thermal speed rating
≈m
1.285 kg
Weight
Mounting dimensions
da max
81 mm
Maximum diameter of shaft shoulder
db min
79 mm
Minimum diameter of shaft shoulder
Da min
110 mm
Minimum diameter of housing shoulder
Da max
116 mm
Maximum diameter of housing shoulder
Db min
118 mm
Minimum diameter of housing shoulder
Ca min
4 mm
Minimum axial space
Cb min
5 mm
Minimum axial space
ra max
2 mm
Maximum fillet radius of shaft
rb max
1.5 mm
Maximum fillet radius of housing
