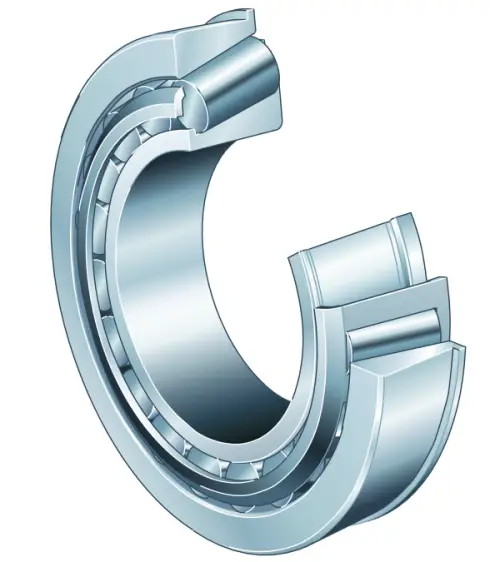

FAG 33019-XL-R-W215FD
Tapered roller bearings with flange 330, main dimensions to DIN ISO 355 / DIN 720, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock

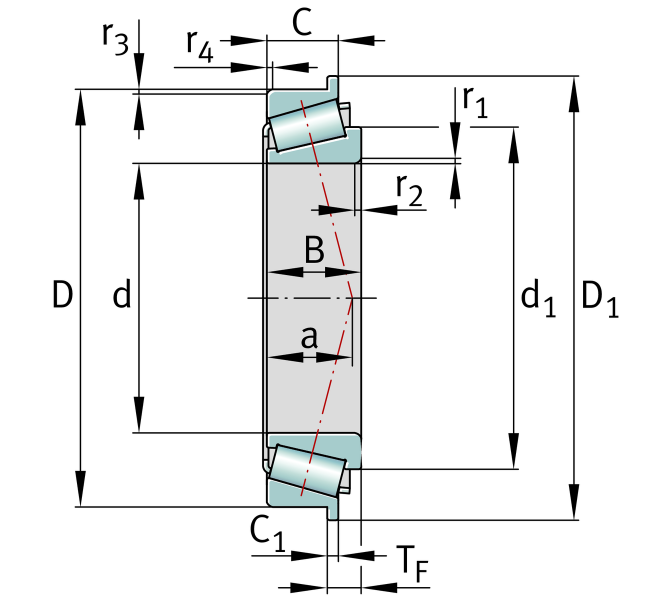

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
145 mm
Outside diameter
B
39 mm
Width, inner ring
C
32.5 mm
Width, outer ring
TF
12.5 mm
Width assembled flange bearing
Cr
260,000 N
Basic dynamic load rating, radial
C0r
380,000 N
Basic static load rating, radial
Cur
62,000 N
Fatigue load limit, radial
CG
5,600 1/min
Limiting speed
nϑr
3,000 1/min
Thermal speed rating
≈m
2.41 kg
Weight

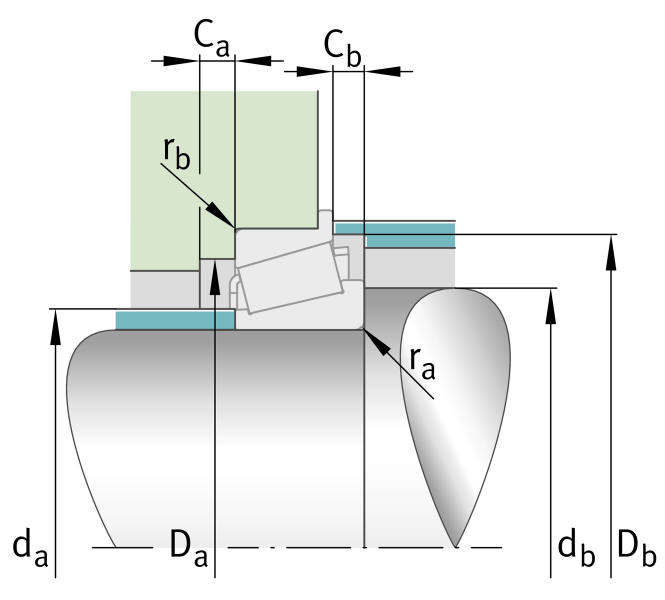

Mounting dimensions
da max
104 mm
Maximum diameter of shaft shoulder
db min
104 mm
Minimum diameter of shaft shoulder
Da min
131 mm
Minimum diameter of housing shoulder
Da max
136 mm
Maximum diameter of housing shoulder
Db min
139 mm
Minimum diameter of housing shoulder
Ca min
7 mm
Minimum axial space
Cb min
6.5 mm
Minimum axial space
ra max
2 mm
Maximum fillet radius of shaft
rb max
1.5 mm
Maximum fillet radius of housing
