FAG 7034-B-XL-MP
Angular Contact Ball Bearings

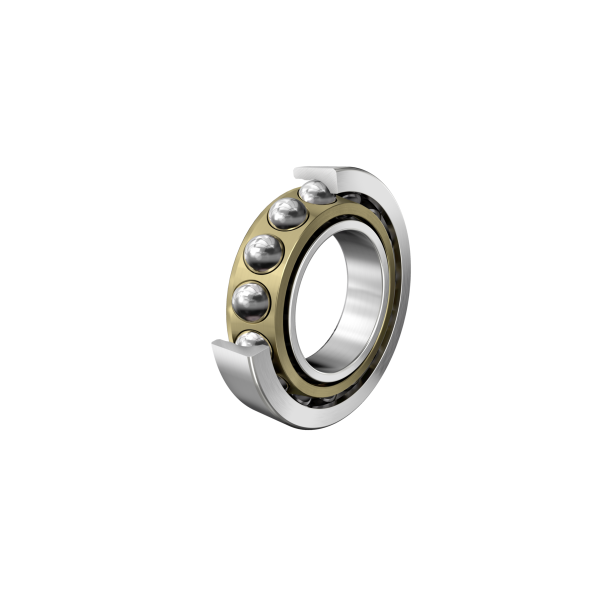

Angular contact ball bearing 70..-B-XL-MP, single row, X-life, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
170 mm
Bore diameter
D
260 mm
Outside diameter
B
42 mm
Width
Cr
184,000 N
Basic dynamic load rating, radial
C0r
214,000 N
Basic static load rating, radial
Cur
10,100 N
Fatigue load limit, radial
nG
4,200 1/min
Limiting speed
nϑr
2,850 1/min
Reference speed
≈m
1 kg
Weight
Mounting dimensions
da min
180.2 mm
Minimum diameter of shaft shoulder
Da max
249.8 mm
Maximum diameter of housing shoulder
Db max
254 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum fillet radius of shaft
ra1 max
1 mm
Maximum fillet radius of housing
