FAG 719/560-MP-P6
Angular Contact Ball Bearings

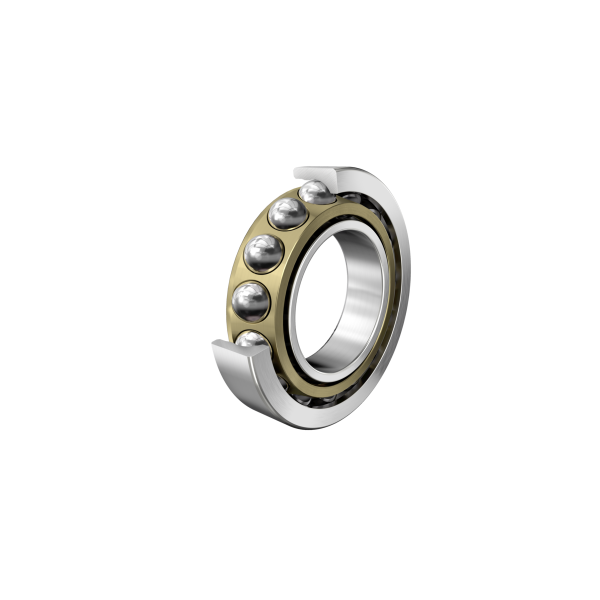

Angular contact ball bearing 719..-MP, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
560 mm
Bore diameter
D
750 mm
Outside diameter
B
85 mm
Width
Cr
650,000 N
Basic dynamic load rating, radial
C0r
1,470,000 N
Basic static load rating, radial
Cur
33,500 N
Fatigue load limit, radial
nG
1,180 1/min
Limiting speed
nϑr
680 1/min
Reference speed
≈m
101.6 kg
Weight
Mounting dimensions
da min
578 mm
Minimum diameter of shaft shoulder
Da max
732 mm
Maximum diameter of housing shoulder
Db max
741.2 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius of shaft
ra1 max
2 mm
Maximum fillet radius of housing
