FAG 7602012-2RS-TVP
Axial-Super Precision Bearings

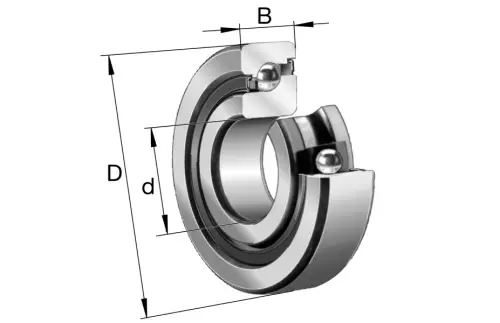

Axial angular contact ball bearings 7602..-2RS, single direction, with contact angle u03B1 = 60u00B0, restricted tolerances, lip seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

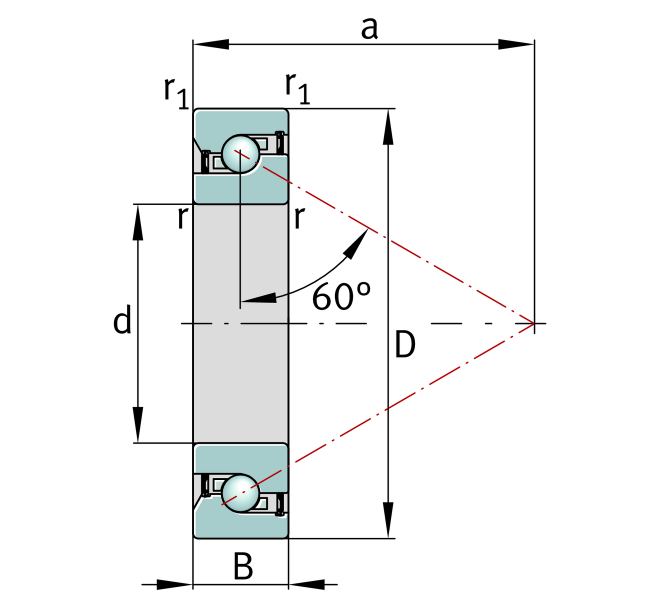

Main Dimensions & Performance Data
d
12 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.004 mm
Bore diameter lower tolerance
D
32 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.006 mm
Outside diameter lower tolerance
B
10 mm
Width
0 mm
Width upper tolerance
-0.08 mm
Width lower tolerance
Ca
12,200 N
Basic dynamic load rating, axial
C0a
20,700 N
Basic static load rating, axial
Cua
940 N
Fatigue load limit, axial
nG Grease
10,400 1/min
Limiting speed for grease lubrication
nϑ
8,000 1/min
Thermally safe operating speed
≈m
42 g
Weight
Mounting dimensions
Da
27 mm
Diameter of housing
Da
H12
Diameter of housing clearance
da
17 mm
Diameter shaft
da
h12
Diameter shaft clearance
