FAG 7602015-2RS-TVP
Axial-Super Precision Bearings

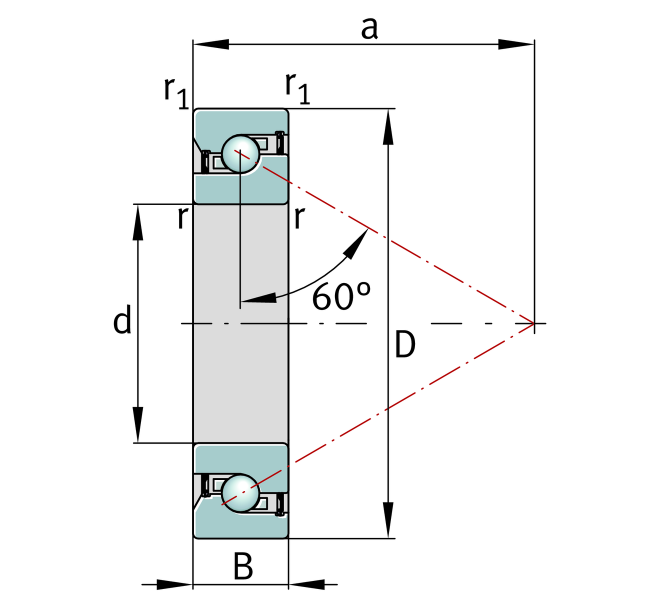

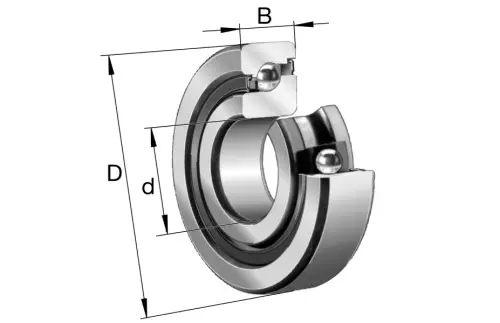

Axial angular contact ball bearings 7602..-2RS, single direction, with contact angle u03B1 = 60u00B0, restricted tolerances, lip seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
15 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.004 mm
Bore diameter lower tolerance
D
35 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.006 mm
Outside diameter lower tolerance
B
11 mm
Width
0 mm
Width upper tolerance
-0.08 mm
Width lower tolerance
Ca
13,100 N
Basic dynamic load rating, axial
C0a
24,700 N
Basic static load rating, axial
Cua
1,120 N
Fatigue load limit, axial
nG Grease
9,000 1/min
Limiting speed for grease lubrication
nϑ
6,700 1/min
Thermally safe operating speed
≈m
50 g
Weight
Mounting dimensions
Da
30 mm
Diameter of housing
Da
H12
Diameter of housing clearance
da
20.5 mm
Diameter shaft
da
h12
Diameter shaft clearance
