FAG 7602020-2RS-TVP
Axial-Super Precision Bearings
Axial angular contact ball bearings 7602..-2RS, single direction, with contact angle u03B1 = 60u00B0, restricted tolerances, lip seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

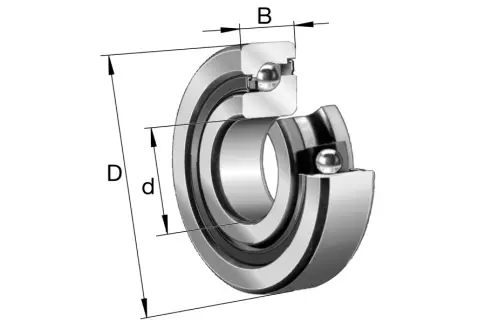

Main Dimensions & Performance Data
d
20 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
47 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.006 mm
Outside diameter lower tolerance
B
14 mm
Width
0 mm
Width upper tolerance
-0.12 mm
Width lower tolerance
Ca
20,300 N
Basic dynamic load rating, axial
C0a
41,500 N
Basic static load rating, axial
Cua
1,900 N
Fatigue load limit, axial
nG Grease
6,800 1/min
Limiting speed for grease lubrication
nϑ
5,000 1/min
Thermally safe operating speed
≈m
120 g
Weight
Mounting dimensions
Da
39.5 mm
Diameter of housing
Da
H12
Diameter of housing clearance
da
27.5 mm
Diameter shaft
da
h12
Diameter shaft clearance
