FAG 7602045-TVP

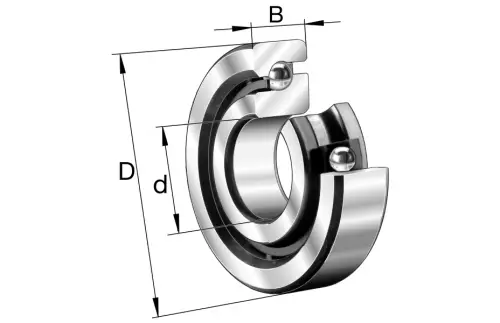

Axial angular contact ball bearing 7602..-TVP, single direction, no screw mounting
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

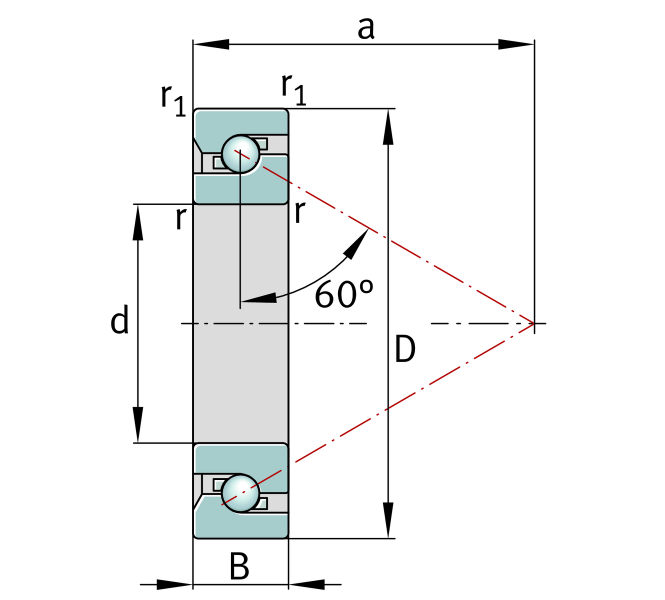

Main Dimensions & Performance Data
d
45 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.006 mm
Bore diameter lower tolerance
D
85 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.008 mm
Outside diameter lower tolerance
B
19 mm
Width
0 mm
Width upper tolerance
-0.12 mm
Width lower tolerance
Ca
39,500 N
Basic dynamic load rating, axial
C0a
111,000 N
Basic static load rating, axial
Cua
5,100 N
Fatigue load limit, axial
nG Grease
4,700 1/min
Limiting speed for grease lubrication
nϑ
2,600 1/min
Thermally safe operating speed
≈m
0.498 kg
Weight

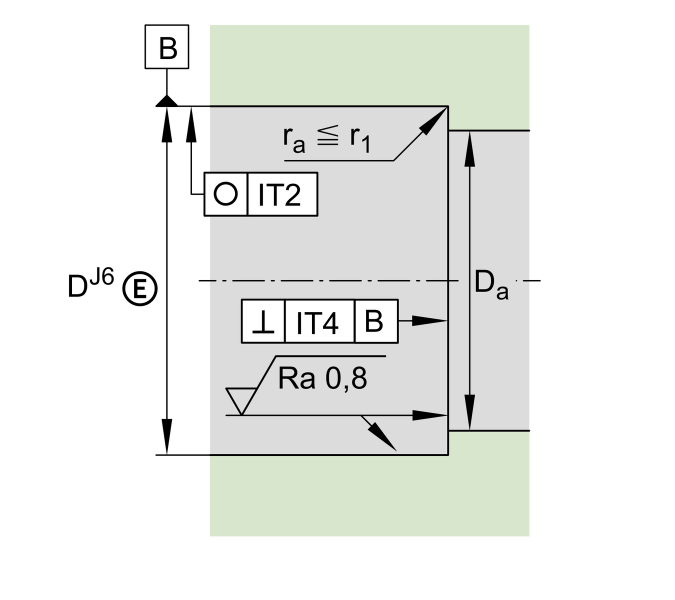

Mounting dimensions
Da
73 mm
Diameter of housing
Da
H12
Diameter of housing clearance
da
57 mm
Diameter shaft
da
h12
Diameter shaft clearance
