FAG 7602050-TVP

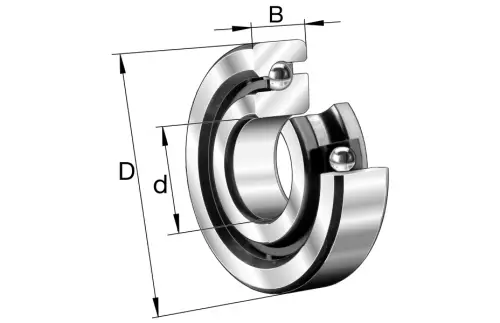

Axial angular contact ball bearing 7602..-TVP, single direction, no screw mounting
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

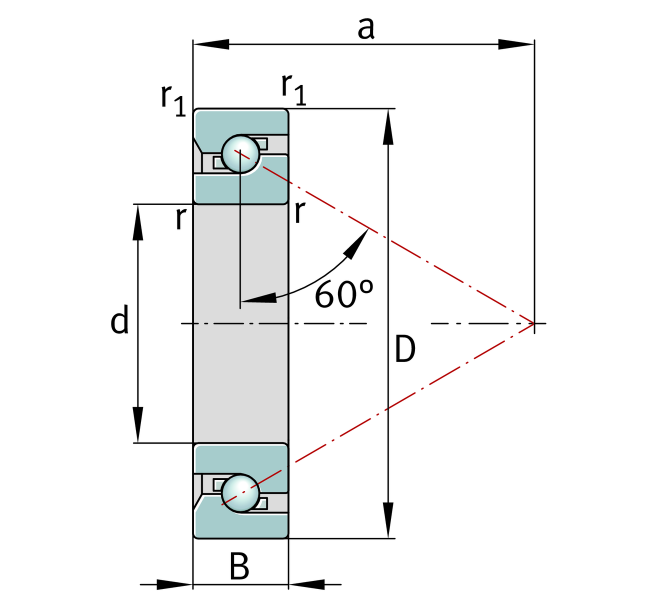

Main Dimensions & Performance Data
d
50 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.006 mm
Bore diameter lower tolerance
D
90 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.008 mm
Outside diameter lower tolerance
B
20 mm
Width
0 mm
Width upper tolerance
-0.12 mm
Width lower tolerance
Ca
41,000 N
Basic dynamic load rating, axial
C0a
122,000 N
Basic static load rating, axial
Cua
5,600 N
Fatigue load limit, axial
nG Grease
4,300 1/min
Limiting speed for grease lubrication
nϑ
2,400 1/min
Thermally safe operating speed
≈m
0.575 kg
Weight

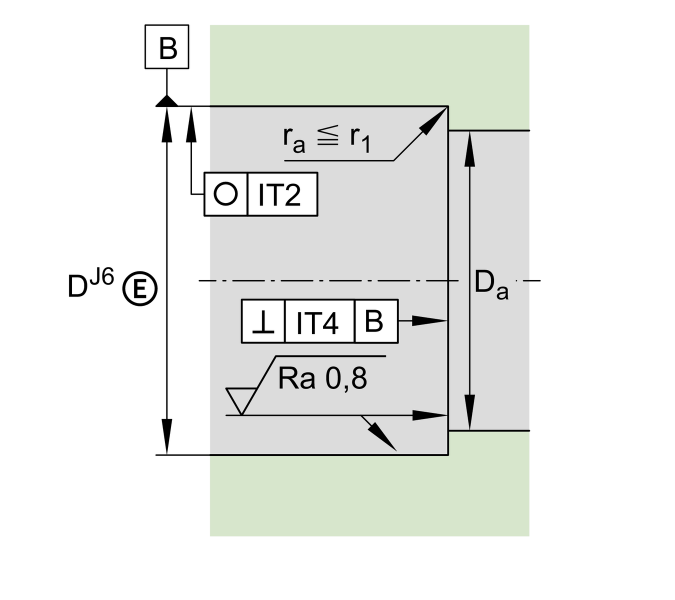

Mounting dimensions
Da
79 mm
Diameter of housing
Da
H12
Diameter of housing clearance
da
63 mm
Diameter shaft
da
h12
Diameter shaft clearance
