FAG 7603020-2RS-TVP
Axial-Super Precision Bearings

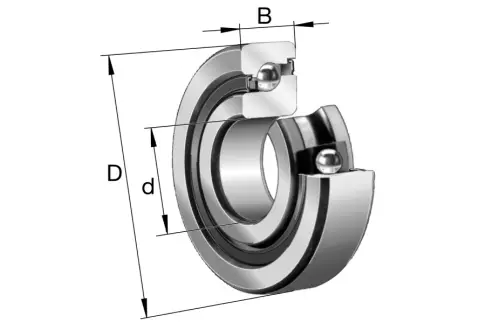

Axial angular contact ball bearings 7603..-2RS, single direction, with contact angle u03B1 = 60u00B0, restricted tolerances, lip seals on both sides
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

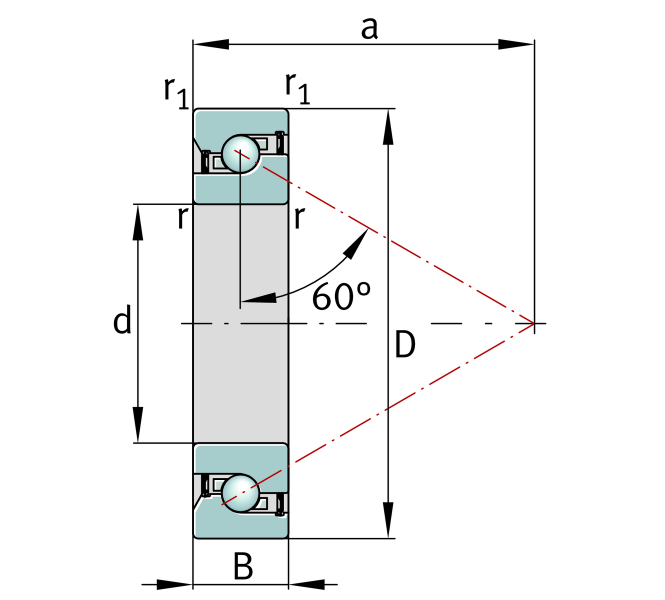

Main Dimensions & Performance Data
d
20 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
52 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.007 mm
Outside diameter lower tolerance
B
15 mm
Width
0 mm
Width upper tolerance
-0.12 mm
Width lower tolerance
Ca
25,500 N
Basic dynamic load rating, axial
C0a
53,000 N
Basic static load rating, axial
Cua
2,430 N
Fatigue load limit, axial
nG Grease
6,200 1/min
Limiting speed for grease lubrication
nϑ
4,500 1/min
Thermally safe operating speed
≈m
174 g
Weight
Mounting dimensions
Da
43.5 mm
Diameter of housing
Da
H12
Diameter of housing clearance
da
30.5 mm
Diameter shaft
da
h12
Diameter shaft clearance
