FAG AH24148-H
Withdrawal Sleeves
Withdrawal sleeve AH..-H, accessory rolling bearing, hydraulic, finished part
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

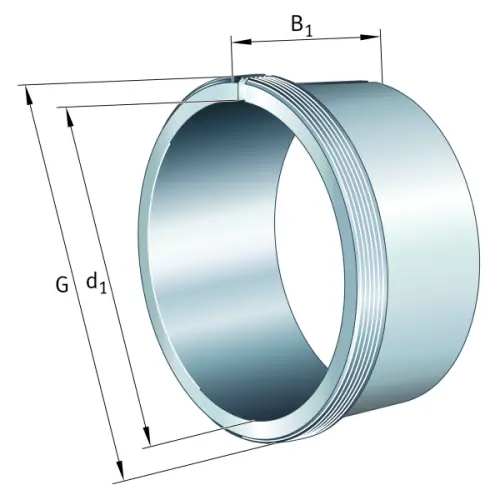

Main Dimensions & Performance Data
d1
220 mm
Bore diameter
G
Tr260X4
Thread
B1
180 mm
Sleeve length
≈m
12.6 kg
Weight

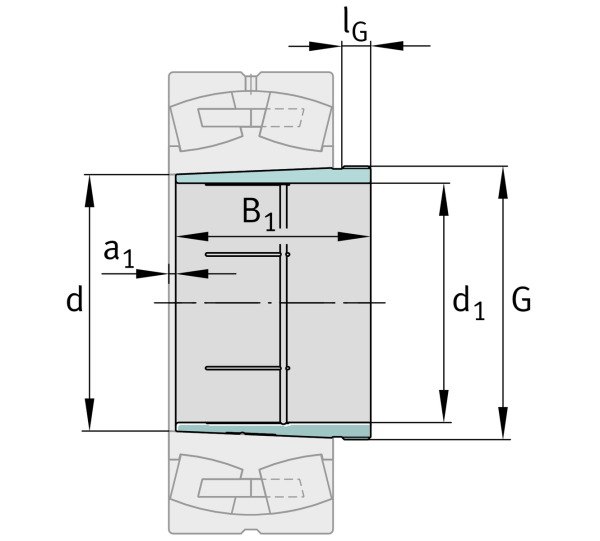

Mounting dimensions
G1
G1/8
Thread oil connector
a
8.5 mm
Distance oil connector
IG1
12 mm
Thread depth oil connector
