FAG AH3040-H
Withdrawal Sleeves
Withdrawal sleeve AH..-H, accessory rolling bearing, hydraulic, finished part
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

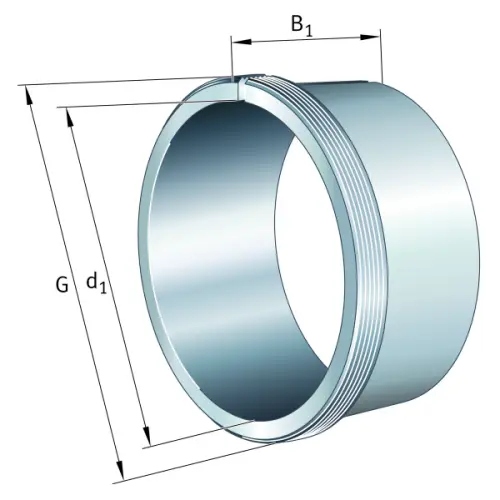

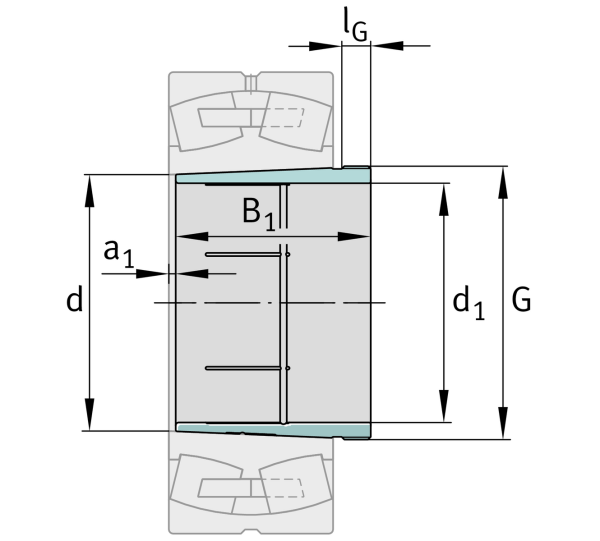

Main Dimensions & Performance Data
d1
190 mm
Bore diameter
G
Tr215X4
Thread
B1
102 mm
Sleeve length
≈m
3.83 kg
Weight

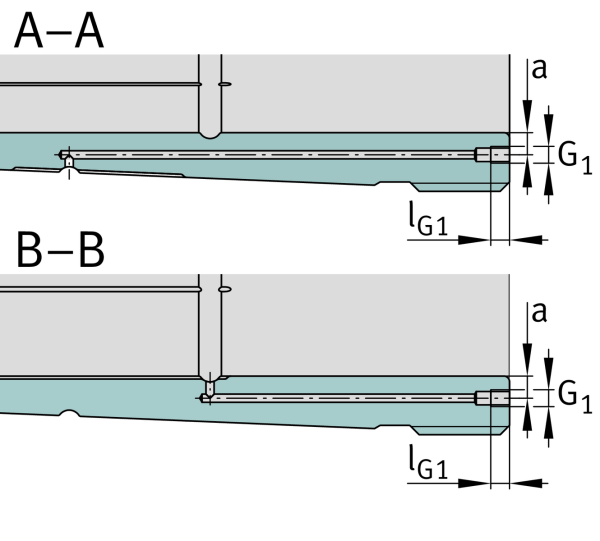

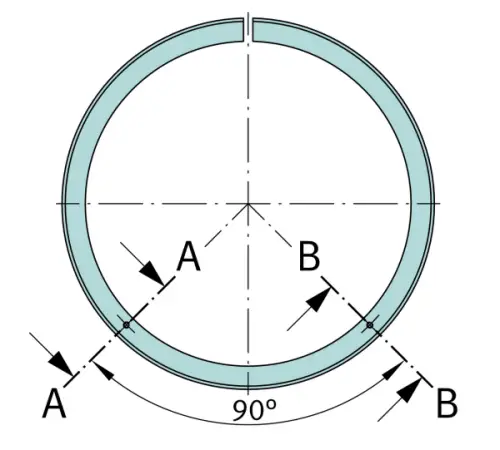

Mounting dimensions
G1
M6
Thread oil connector
a
4.2 mm
Distance oil connector
IG1
7 mm
Thread depth oil connector
