FAG AH3236-H
Withdrawal sleeve AH..-H, accessory rolling bearing, hydraulic, finished part
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

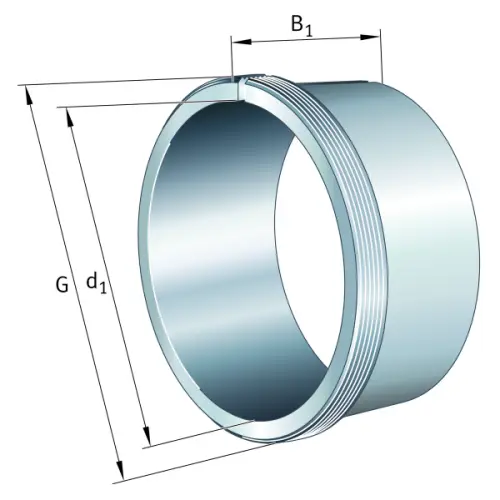

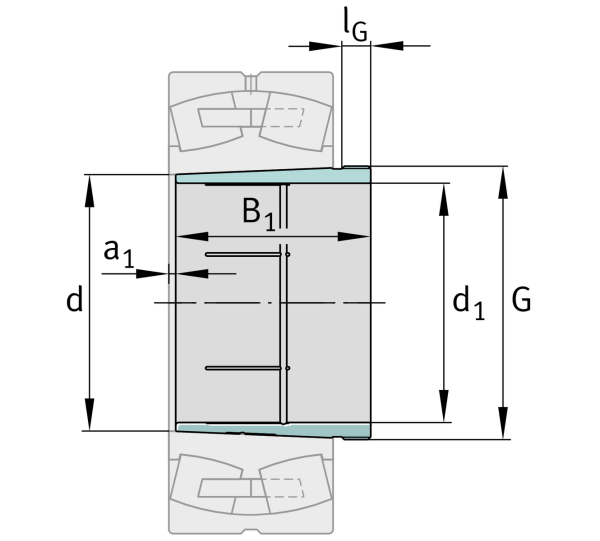

Main Dimensions & Performance Data
d1
170 mm
Bore diameter
G
M200x3
Thread
B1
140 mm
Sleeve length
≈m
5.4 kg
Weight

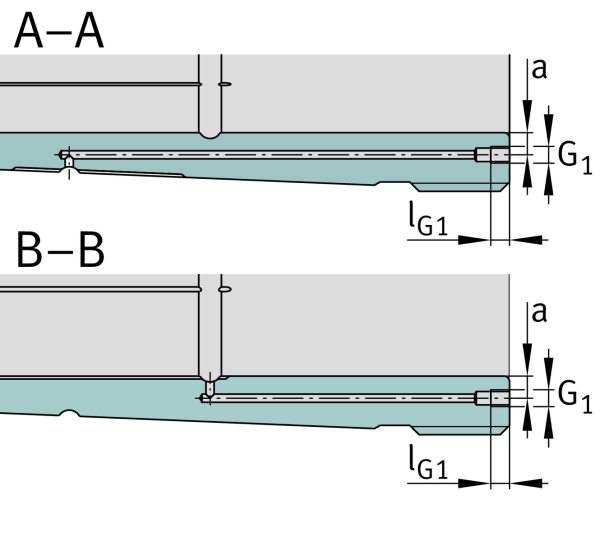

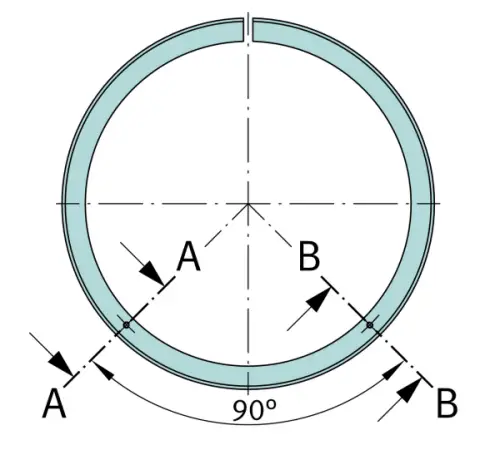

Mounting dimensions
G1
M6
Thread oil connector
a
4.5 mm
Distance oil connector
IG1
7 mm
Thread depth oil connector
