FAG AH39/1000-H

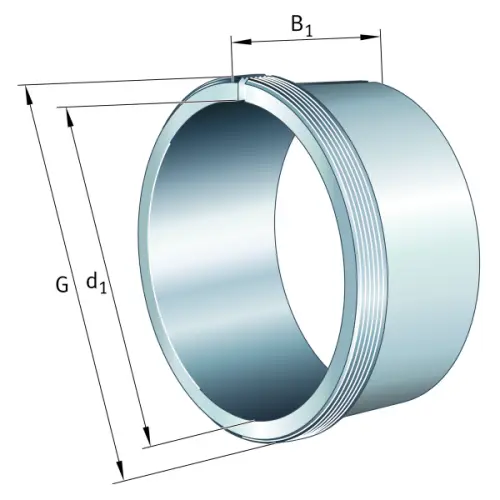

Withdrawal sleeve AH..-H, accessory rolling bearing, hydraulic, finished part
(BRAND)：FAG
(Availability)：In Stock

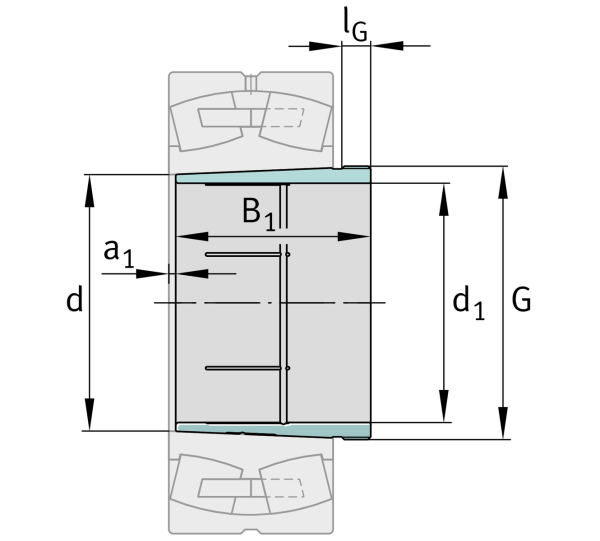

Main Dimensions & Performance Data
d1
950 mm
Bore diameter
G
Tr1035X8
Thread
B1
296 mm
Sleeve length
≈m
229 kg
Weight

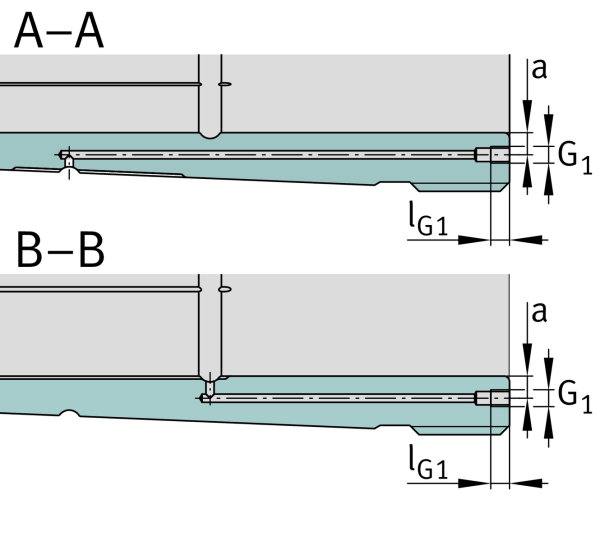

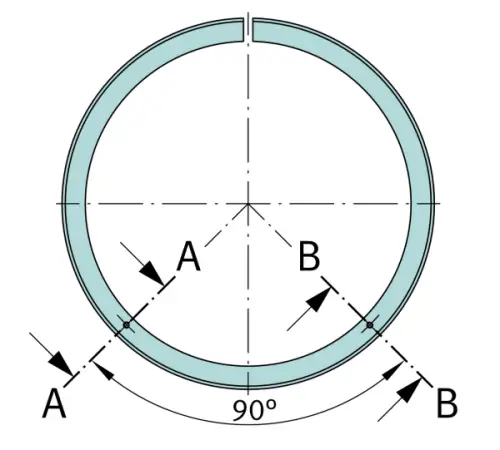

Mounting dimensions
G1
G1/4
Thread oil connector
a
15 mm
Distance oil connector
IG1
15 mm
Thread depth oil connector
