FAG AH39/1400G-H
Withdrawal Sleeves
Withdrawal sleeve AH..-H, accessory rolling bearing, hydraulic, finished part
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

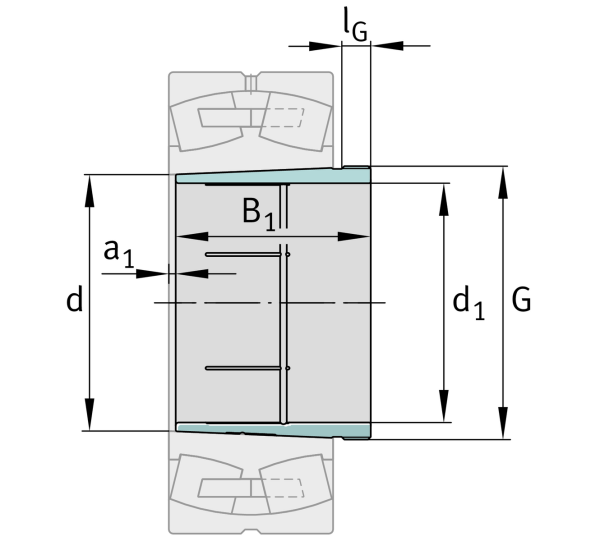

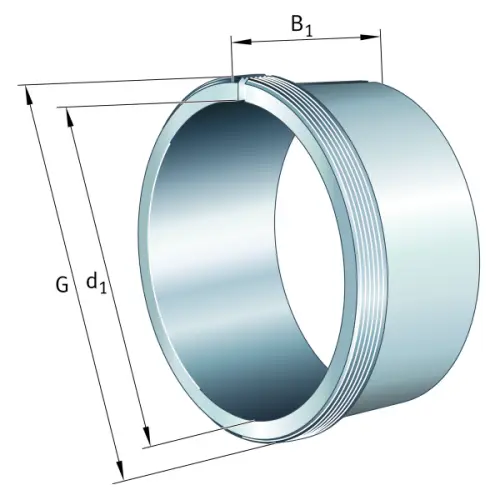

Main Dimensions & Performance Data
d1
1,350 mm
Bore diameter
G
Tr1500X8
Thread
B1
380 mm
Sleeve length
≈m
499 kg
Weight

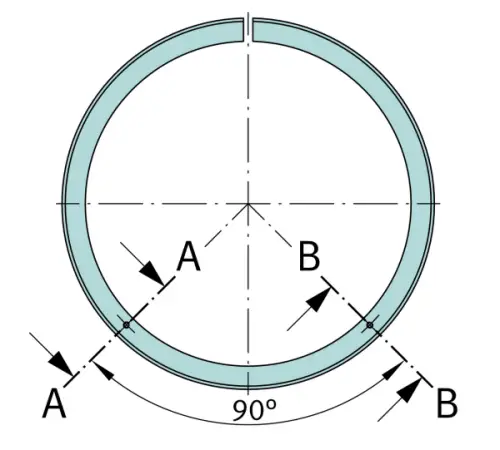

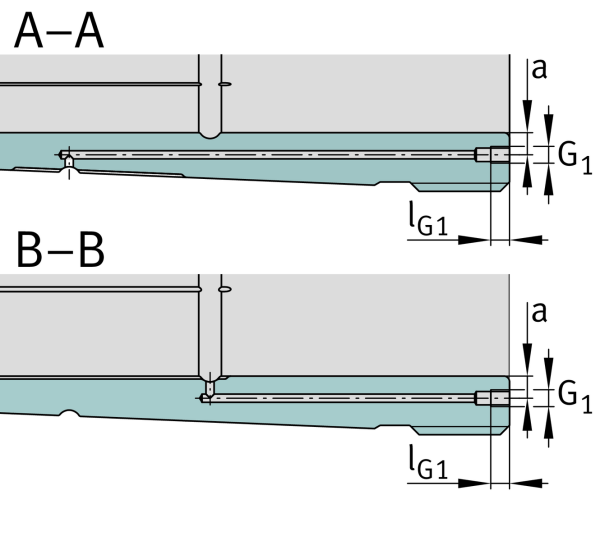

Mounting dimensions
G1
G1/4
Thread oil connector
a
15 mm
Distance oil connector
IG1
15 mm
Thread depth oil connector
