FAG HCB7032-C-T-P4S-UL
Radial Super Precision Bearings
Spindle bearing HCB70..-C, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, with ceramic balls, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
240 mm
Outside diameter
B
38 mm
Width
Cr
193,000 N
Basic dynamic load rating, radial
C0r
140,000 N
Basic static load rating, radial
Cur
8,000 N
Fatigue load limit, radial
nG Grease
7,500 1/min
Limiting speed for grease lubrication
nG Oil
12,000 1/min
Limiting speed for oil lubrication
≈m
4.18 kg
Weight

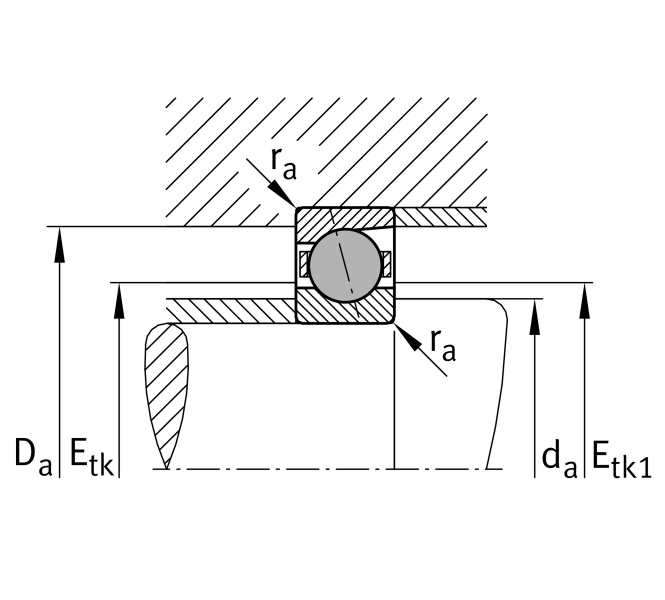

Mounting dimensions
da
174 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
228 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2.1 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
Etk min
184.7 mm
Minimum diameter injection pitch
Etk max
193.4 mm
Maximum diameter injection pitch
Etk1 min
184.7 mm
Minimum diameter injection pitch
Etk1 max
193.4 mm
Maximum diameter injection pitch
a
45.8 mm
Distance between the apexes of the pressure cones
