FAG BSB2562-SU-XL
Axial-Super Precision Bearings
Axial angular contact ball bearing BSB..-SU-XL, single direction, no screw mounting
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

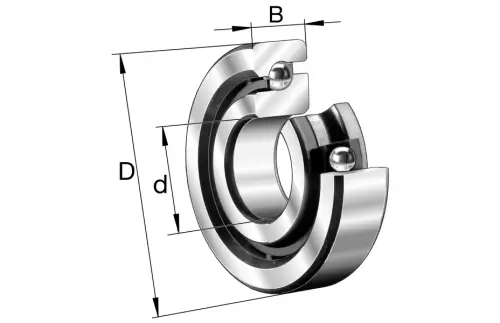

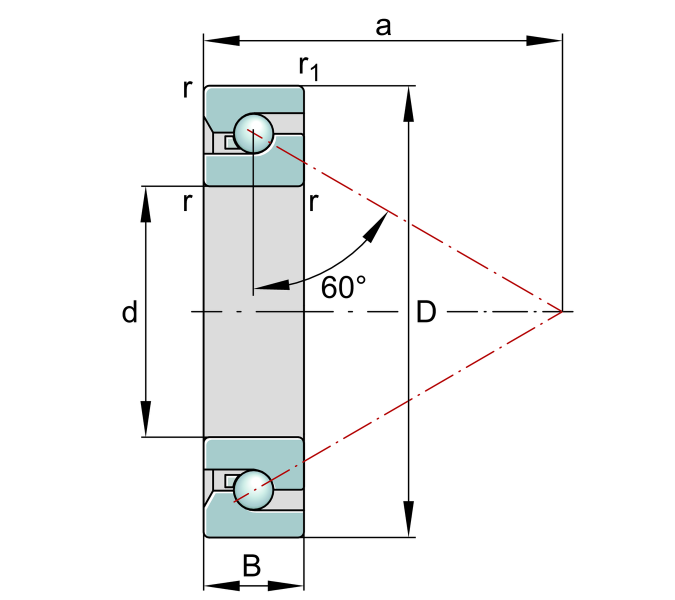

Main Dimensions & Performance Data
d
25 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
62 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.007 mm
Outside diameter lower tolerance
B
15 mm
Width
0 mm
Width upper tolerance
-0.12 mm
Width lower tolerance
Ca
32,000 N
Basic dynamic load rating, axial
C0a
64,000 N
Basic static load rating, axial
Cua
3,850 N
Fatigue load limit, axial
nG Grease
6,700 1/min
Limiting speed for grease lubrication
nϑ
5,400 1/min
Thermally safe operating speed
≈m
0.233 kg
Weight
Mounting dimensions
Da
54 mm
Diameter of housing
Da
H12
Diameter of housing clearance
da
38 mm
Diameter shaft
da
h12
Diameter shaft clearance
