FAG F-680536.RN

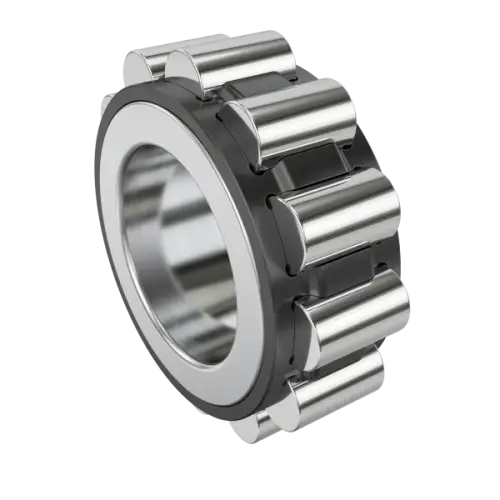

Special bearing RSL with cage, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL1830
(BRAND)：FAG
(Availability)：In Stock

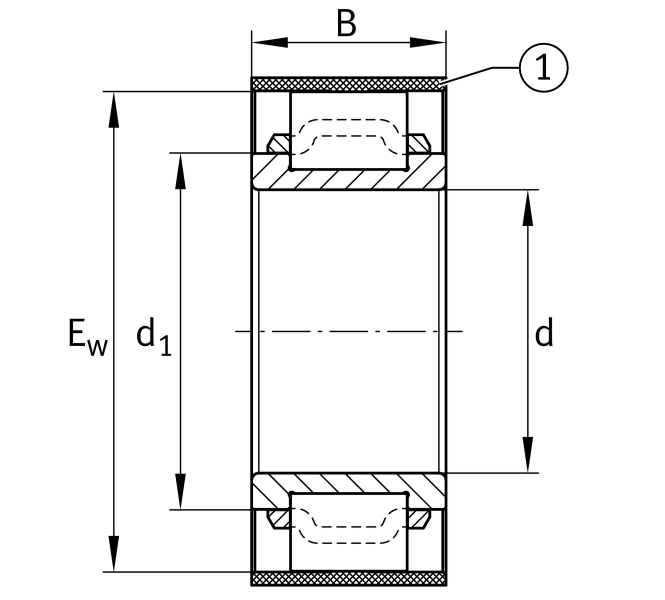

Main Dimensions & Performance Data
d
70 mm
Bore diameter
Ew
100.28 mm
B
30 mm
Width
Cr
122,000 N
Basic dynamic load rating, radial
C0r
129,000 N
Basic static load rating, radial
Cur
22,200 N
Fatigue load limit, radial
CG
10,900 1/min
Limiting speed
≈m
0.58 kg
Weight
Mounting dimensions
da min
81 mm
Minimum diameter shaft shoulder
