FAG N232-E-XL-M1-J20AA-C3
Cylindrical Roller Bearings
Cylindrical roller bearing N2..-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

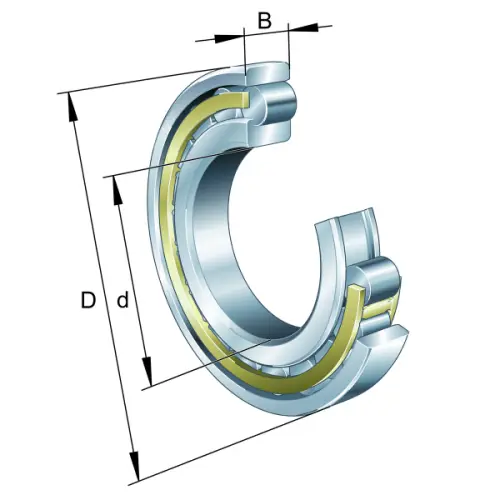

Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
290 mm
Outside diameter
B
48 mm
Width
Cr
590,000 N
Basic dynamic load rating, radial
C0r
670,000 N
Basic static load rating, radial
Cur
102,000 N
Fatigue load limit, radial
nG Grease
3,600 1/min
Limiting speed for grease lubrication
nG Oil
4,200 1/min
Limiting speed for oil lubrication
≈m
14.9 kg
Weight
Mounting dimensions
da
174 mm
Diameter shaft shoulder
Da
276 mm
Diameter of housing shoulder
ra1 max
2.5 mm
Maximum recess radius
