FAG NJ2336-EX-TB-XL-MPAX-QP51-ILR-C4
Cylindrical Roller Bearings
Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

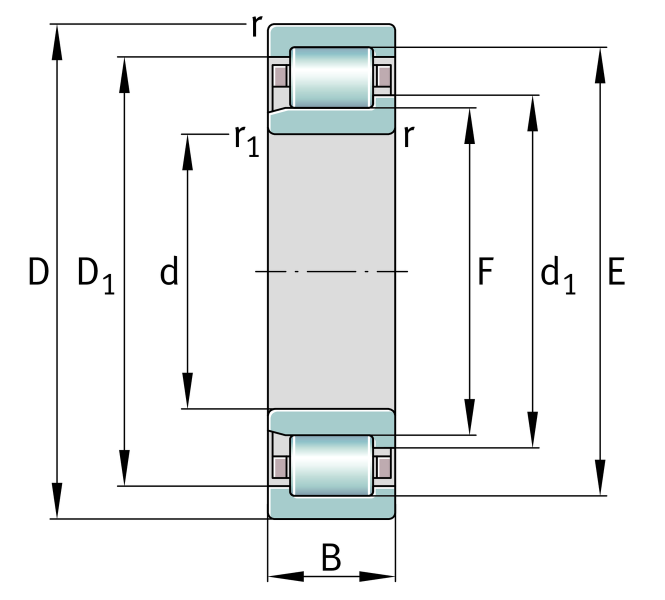

Main Dimensions & Performance Data
d
180 mm
Bore diameter
D
380 mm
Outside diameter
B
126 mm
Width
Cr
2,460,000 N
Basic dynamic load rating, radial
C0r
2,330,000 N
Basic static load rating, radial
Cur
320,000 N
Fatigue load limit, radial
CG
3,000 1/min
Limiting speed
nϑr
1,120 1/min
Reference speed
≈m
72.1 kg
Weight
Mounting dimensions
Da max
363 mm
Maximum diameter of housing shoulder
